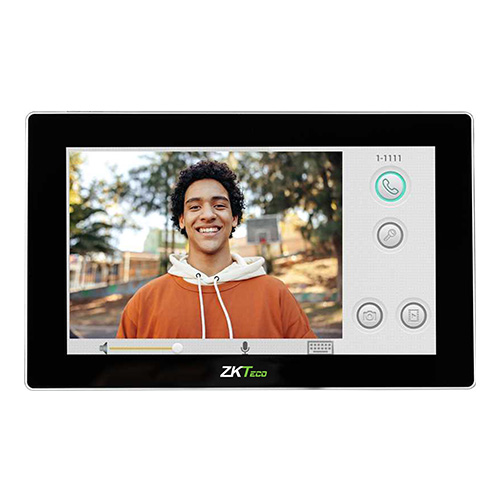

ZKTeco VT10-B21L Smart Video Indoor Monitor

Description

Specifications:

Physical Parameters

Operating System Linux

RAM 64 MB

ROM 128 MB

Front Plastic

Power Supply PoE (IEEE802.3af ) or DC 12V/2A

Backup Power Supply 1.5 W

Rated Power 9 W

TF Card Slot No

USB Port No

Ethernet Port 1 x RJ45, 10/100Mbps auto-adaptation

RS485 1

Doorbell Input Maximum 8 input ports

Alarm Input
Support 8 sensor zones: smoke, gas, PIR, door, window, emergency alarm and flood

Installation Method Wall-mounted (on flat surface)

Application Environment Indoor

Dimensions 270 * 168 * 15( mm)

Operating Temperature -10°C to +55°C

Temperature Operating -10°C to +60°C

DTMF RFC2833

Operating Humidity 10% to 90% (non-condensing)

Display Parameters

Display 10.1-inch TFT LCD

Display Capacitive Touch Screen

Resolution 1024 x 600

Audio

Audio Codec G.711

Echo Cancellation Yes

Rated Power 10 W

Microphone Built-in

Speaker Built-in

Video

Video Codec H.264

Network

Protocols
SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP

Product Packaging

Packaging

– VT10-B21L (Power adapter not included)
– Bracket
– Screw Set
– Directions Instructions for use
