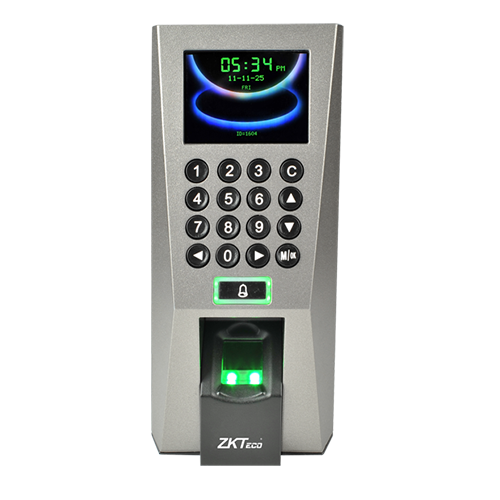

ZKTeco F18 Fingerprint Access Control Terminal
Contact
F18 is an innovative biometric ngerprint reader for access control application.With high-performance rmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and exible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and rmware, the new f18 is able to verify ngerprints with even higher eciency. The device o ers exibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP is also available which enable F18 to be applied in dierent network.
F18 standard with AC push Firmware connect to ZKBio CVAccess, optional standalone Firmware, and also optional TA push Firmware connect to ZKBiotime.
Description
Specifications:
Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity (optional) 3,000
Card Capacity 5000(Optional) ID / IC / HID Prox / HID iclass card
Transaction Capacity 100,000
Sensor ZK Optical Sensor
Algorithm Version ZK Finger V10.0
Communication RS232 / 485*, TCP / IP, USB-host
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal Input, Output, SRB
Functions
DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
Power Supply 12V DC, 3A
Operating Temperature 0 °C – 45 °C
Operating Humidity 20% – 80%
SDK and Software
AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
Dimension 80 × 183 × 42mm (W*D*H)
