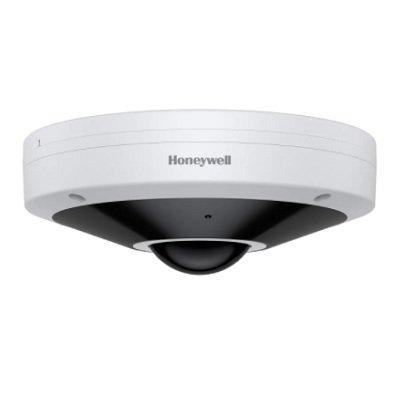

Camera giám sát Honeywell HC30WF5R1

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC/PAL

Scanning System Progressive

Image Sensor 1/2.7″ Progressive CMOS

Number Of Pixels (H × V) 2560(H) x 1920(V)

Minimum Illumination 0.05lux color @ F2.25, 0 lux B/W with IR LEDs on @ F2.25

S/N Ratio >55dB

Electronic Shutter Speed 1/5 ~ 1/32,000

IR Distance Distance up to 20m (65.6ft)

IR Light Control Smart IR (Auto/Manual)/OFF

IR Light Number 6

Day/Night Auto/Day/Night/Schedule

Backlight Compensation WDR, HLC

White Balance Auto/Fixed Current/Manual

Gain Control 0-100%

Wide Dynamic Range 120dB

Noise Reduction 3D DNR

Privacy Masking Off / On (5 Areas)

Motion Detection Motion detection/Intrusion detection/ People detection

Tampering Detection Tampering Detection/Image too dark detection/Image too bright detection/Image too blurry detection

Audio Detection Support

Region Of Interest Support

Lens 1.16mm, Fixed, F2.25

Angle Of View Horizontal: 360°, Vertical: 180°

VIDEO

Video Compression H.265/H.264/Smart Codec/MJPEG

Resolution
1920×1920/1536×1536/1200×1200/960×960/480×480

Frame Rate
Main Stream: 1920×1920 (1 ~ 25/30fps);
Sub Stream: 960×960 (1 ~ 25/30fps);
Third Stream: 480×480 (1 ~ 25/30fps)

Bit Rate Control Constrained bit rate/Fixed quality

Bit Rate 20K ~ 40Mbps

Dewarping mode
Ceiling Mount: 1O/1P/1R/2P/1O3R/4R/4R PRO/1O8R;
Wall Mount:1O/1P/1R/1P2R/1O3R/1P3R/4R;
Floor Mount: 1O/1P/1R/2P/1O3R/4R/4R PRO/1O8R

AUDIO

Audio Interface 1 built-in microphone

Audio Compression G711/G726

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Chrome 71+, Internet Explorer 11.0+

Supported OS Microsoft Windows 7/10

Protocols* IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G/S

Maximum Users Access 10 Users

Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES 128/256, SSH/ Telnet closed, PCIDSS compliance

Event
Event notification using HTTP, SMTP, NAS server and MicroSD card
File upload via HTTP, SMTP, NAS server and MicroSD card

Micro SD Micro SD/SDHC/SDXC card slot (256GB)

ELECTRICAL

Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)

Power Consumption MAX 10.8W

MECHANICAL

Dimensions
ø159.95mm x 59.7mm(ø6.3”x2.35”)
(w/Mount plate)
ø159.95mm x 51.2mm(ø6.31”x 2.02”)

Product Weight 0.82kg

Package Weight 1.50kg

Material Die-casting aluminum housing with coating

Construction Color RAL 120-1 (Lyric White)

ENVIRONMENTAL

Operating Temperature
Starting: -10°C ~ 60°C (14°F ~ 140°F)
Working: -30°C ~ 60°C (-22°F ~ 140°F)

Relative Humidity Less than 90%, non-condensing

Ingress Protection IP66

Vandal Resistance IK10

REGULATORY

Emissions FCC PART 15B, EN 55032, EN61000-6-3

Immunity EN 50130-4

Safety UL 62368-1, EN 62368-1

ROHS EN 50581
