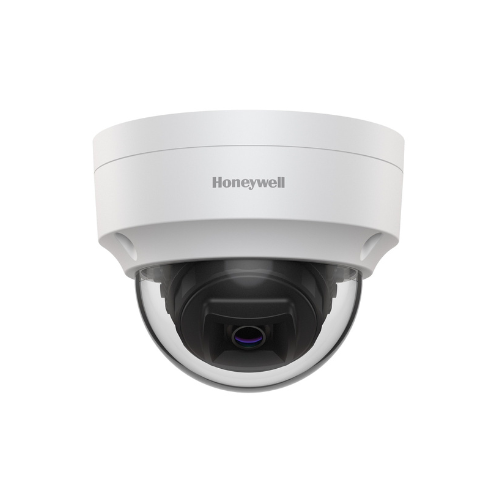

Camera giám sát Honeywell HC30W42R3
Liên hệ
2MP IP WDR IR Rugged Mini Dome Camera.
- Cảm biến hình ảnh: 1/2.9-inch Progressive CMOS
- Độ phân giải: 2.0 Megapixel
- Ống kính: 2.8mm fixed, F2.0
- Tốc độ khung hình: Lên đến 30fps
- Độ nhạy sáng tối thiểu: 0.065 lux (colour)/0 lux (B/W) @ F2.0 (with IR LEDs on)
- Hỗ trợ khe cắm thẻ nhớ Micro SD, Micro SDHC, Micro SDXC up to 256GB
- Tầm quan sát hồng ngoại: 30 mét
- Chuẩn nén hình ảnh: H.265/H.264/Smart Codec/MJPEG
- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời)
- Tiêu chuẩn chống va đập: IK10
- Hỗ trợ chức năng cấp nguồn qua mạng PoE
- Nguồn điện: 12 VDC
Description
Thông số kỹ thuật:
OPERATIONAL
Video Standard NTSC/PAL
Scanning System Progressive
Image Sensor 1/2.9” Progressive CMOS
Number Of Pixels (H × V) 1920(H) x 1080(V)
Minimum Illumination
0.065 lux color @ F2.0, 0 lux
B/W with IR LEDs on @ F2.0
S/N Ratio > 55 dB
Electronic Shutter Speed 1/5 ~ 1/32,000
IR Distance Distance up to 30m (98ft)
IR Light Control Smart IR (Auto/Manual)/OFF
IR Light Number 2
Day/Night Auto/Day/Night/Schedule
Backlight Compensation WDR, HLC
White Balance Auto/Fixed Current/Manual
Gain Control 0-100%
Wide Dynamic Range 120dB
Noise Reduction 3D DNR
Privacy Masking Off / On (5 Areas)
Motion Detection Motion/Intrusion/People detection
Tampering Detection
Tampering Detection/Image too dark detection/Image too bright detection/Image too blurry detection
Region Of Interest Support
Lens 2.8mm, Fixed, F2.0
Angle Of View H:109°, V:59°
VIDEO
Video Compression H.265/H.264/Smart Codec/MJPEG
Resolution 1920×1080/1600×904/1360×768/1280×720/640×360
Frame Rate
Main Stream: 1080P (1 ~ 25/30fps);
Sub Stream: 720P (1 ~ 25/30fps);
Third Stream: 640×360(1 ~ 25/30fps);
Bit Rate Control Constrained bit rate/Fixed quality
Bit Rate 20K ~ 40Mbps
NETWORK
Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome 71+, Internet Explorer 11.0+
Supported OS Microsoft Windows 7/10
Protocols*
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP,
DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP,
ICMP, ARP, TLS
Interoperability ONVIF Profile G/S
Maximum Users Access 10 Users
Security
User account and password protection,
HTTPS, IP Filter,Digest authentication,
TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance
Event
Event notification using HTTP, SMTP, NAS
server and MicroSD card
File upload via HTTP, SMTP, NAS server and
MicroSD card
Micro SD Micro SD/SDHC/SDXC card slot (256GB)
ELECTRICAL
Power Supply DC12V, PoE (IEEE 802.3af) (Class 2)
Power Consumption MAX 6.49W
MECHANICAL
Dimensions Ø117.11mm x 89.51mm (Ø4.61’’ x3.52’’)
Product Weight 0.54kg
Package Weight 0.88kg
Material Die-casting aluminum housing with coating
Construction Color RAL 120-1 (Lyric White)
ENVIRONMENTAL
Operating Temperature
Starting: -10°C ~ 60°C (14°F ~ 140°F)
Working: -30°C ~ 60°C (-22°F ~ 140°F)
Relative Humidity Less than 90%, non-condensing
Ingress Protection IP66
Vandal Resistance IK10
REGULATORY
Emissions FCC PART 15B, EN 55032, EN61000-6-3
Immunity EN 50130-4
Safety UL 62368-1, EN 62368-1
ROHS EN 50581
