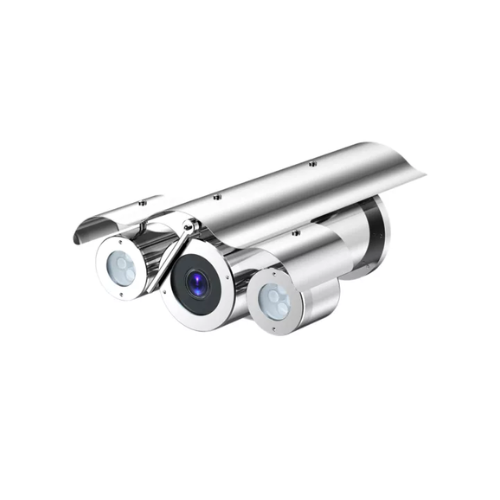

Camera chống cháy nổ Honeywell S1 Series HCS1WB5XD30WAAA

Mô tả

Thông số kỹ thuật:

OPERATIONAL
Video Standard NTSC/PAL
Scanning System Progressive
Image Sensor 1/2.8” CMOS
Number Of Pixels(H x V) 2592×1944
Minimum Illumination (Color/BW)
Color: 0.005 lux @F1.6
BW: 0 lux @F1.6 (IR on)
S/N Ratio 50dB
Electronic Shutter Speed 1/1 to 1/36,000s
IR Distance 200m
IR Light Control Smart IR (Auto/Manual) / OFF
Day/Night Auto (ICR) / Day / Night
Backlight Compensation WDR, BLC, HLC
White Balance Auto / Fixed Current / Manual
Gain Control 0-100%
Wide Dynamic Range 120 dB
Noise Reduction 2D/3D DNR
Lens 5.3 ~ 159mm, P-Iris, F1.6 ~ F4.3
Angle Of View (H x V x D) H: 56.62°-2.48°, V: 42.76° -1.91°
Optical Zoom 30x
Digital Zoom 16x
Focus Control Auto/Manual
Privacy Masking Off / On
Defog Supported
Local Storage
Built-in Micro SD card slot (up to 256GB). Micro SD Card is optional and pre-fitted card from factory only
Alarm Inputs/Outputs
2 Alarm In
1 Alarm Out
Electric Image Stabilization Supported
Pre-sets 2

VIDEO
Video Compression H.265 HEVC/H.264/MJPEG, Smart Codec
Resolution
1st: 2592 x 1944/2592 x 1520/1920 x 1080/1280 x 720
2nd: 704 * 576(PAL)/704 * 480(NTSC)/640 * 480/352 *288(PAL)/352 * 240(NTSC)
3rd: 640 * 480/352 * 288(PAL)/352 * 240(NTSC)/320 * 240
Number of Video Streams 3 (2 for encryption)
Frame Rate
Main/Second Stream: MAX 30 fps (MAX 15 fps for encryption under HTTPS)
Third Stream: MAX 30 fps (Not available for encryption)
Bit Rate 100K~12 Mbps (15K~2 Mbps for encryption)

AUDIO
Audio Compression G.711a/ G.711Mu
Audio Interface Line In/Out

NETWORK
Ethernet 1 x 10 Base-T/100 Base-TX Ethernet (RJ-45)
Fiber Interface
Standard: 10/100 base- T Single Mode Fiber (single fiber), 1310T/1550R, FC connector
Optional (required to be specified in the order): 100/1000 base- T Single Mode dual Fiber (duplex), 1310nm, LC connector
Supported Web Browsers Chrome, Microsoft Edge
Supported OS Microsoft Window10/11/Server 2016/Server 2019
Protocols*
Pv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile G/S/T
Maximum Users Access 10 Users
Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed
Languages Supported Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS / ANALYTICS
Video Analytics People counting, Multi Loitering, Intrusion, Tampering, SMD, Motion Detection
Event Type Video motion detection, Alarm input, Recording notification, Tampering
Event Linkage Event notification using digital output, Email and MicroSD card
Region of Interest 8

ELECTRICAL
Power Source 100-240VAC
Power Consumption (Max) Less than 36 W (100~240V a.c)

MECHANICAL
Dimensions (D x D x H) 523 x 406 x 221 mm
Cable length: 10m
Product Weight 17.5 kg
Package Weight 21 kg (without flexible tube)
Body Material Electro-polished 316L stainless steel construction

ENVIRONMENTAL
Operating Temperature -40°C ~ 70°C
Relative Humidity Less than 95 %, non-condensing
Ingress Protection IP66, IP68
Heater Built-in
Wiper Supported
Washer Supported

REGULATORY
ATEX Ex II 2G Ex db IIC T6 Gb /Ex 2D tb IIIC T80 °C db
IECEx Ex db IIC T6 Gb /Ex tb IIIC T80 °C Db
