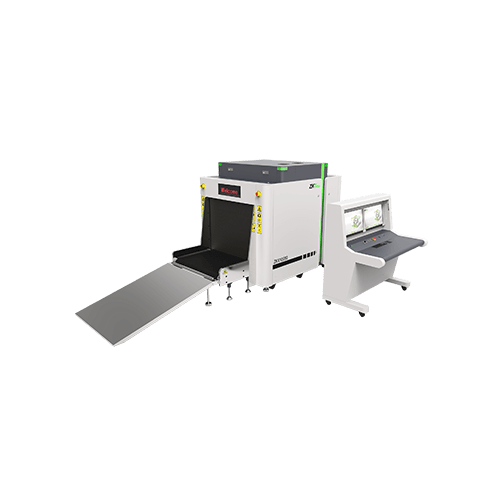

ZKTeco ZKX10080 Dual Energy X-ray Inspection System
ZKTeco ZKX10080 Dual Energy X-ray Inspection System

ZKTeco ZKX10080 Dual Energy X-ray Inspection System

Contact

ZKX10080 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 80cm.

ZKX10080 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX10080 could offer clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX10080 equipped with a lowered conveyor height to make it easier to put the luggage on.

ZKX10080 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. The conveyor could be folded to reduce the package volume so that could save the transportation cost. With modern designed side door, the maintenance would be much easier.

Categories: , , , ,

Description

Specifications:

Tunnel Size (W*H) 1000*800 (mm)
Speed 0.2-0.4m/s (adjustable)
Height of Transmission Belt 385 mm
Maximum Load 200 kg (Adequate distribution)
Wire Resolution 36 AWG
Space Definition Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition 32 AWG
Penetration 32mm steel board
Monitor 21.5 inch LED X 2
System Function High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training.
Film Safety ASA/ISO1600 standard of lm safety
Supported Software ZKBio SIS
Communication Interface RJ45 (TCP/IP)

X-ray System
TubeVoltage 80-160kV (adjustable)
Tube Current 0.3-1.0 mA(adjustable)
Cooling Seal oil cooling / 100%
Radiation Leak Dosage 0.2 μ Gy/h (5cm from the surface)

Installation Specification
Size (L*W*H) 2984*1405*1666 (mm)
Package Size (L*W*H) 2200*1500*1850 (mm)
Console Desk Size (L*W*H) 1320*900*1320 (mm)
Package Weight 1050KG+135KG (Console desk)
Power Consumption 1 kVA
Noise 53.8 dB(A)
