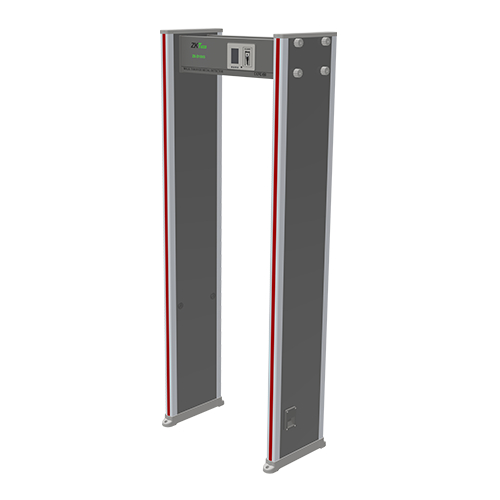

ZKTeco ZK-D2180 Walk Through Metal Detector
ZKTeco ZK-D2180 Walk Through Metal Detector

ZKTeco ZK-D2180 Walk Through Metal Detector

Contact

Features

• Up to 18 detection zones and 500 sensitivity levels allow precise contraband detection.
• Accurate detection of a wide range of contrabands.
• Clear threat indication with synchronous sound alert and LED indicator.
• Compatible with ZK Metal Detector App/Software and ZKBio SIS for real-time monitoring and data logs.
• Separate counting of in and out number of person.
• Automatic setting of sensitivity and channel.
• Linkage with entrance gate by relay.
• Simple installation and use.

Applications: Exhibition center, Government office, Electronic factory, Prison, Finance, Hotel

Categories: , , , ,

Description

Specifications:

Display 3.5” TFT Color Screen
Physical Keypad 4 keys
Detection Zone 6/12/18 zones mode adjustable
Sensitivity Level 500
Channel 100
Smallest Metal Objects Detected Coin-sized Metals
Maximum Detection Distance Vertical 20-2000mm
Detection Sound Alert
6 types of alarm tones (adjustable)
0-6 levels of volume adjustable (Maximum volume 80 dB)
Detection Visual Indicator
2 sets of LEDs (red) are evenly distributed on the left and right door
LED (Steady red= metal contraband detected)
Throughput > 40 persons per minute
Self-diagnosis Program Yes
Detection Mode Automatic Detection Mode/ Infrared Detection Mode (default)
Number of IR Groups 2
Detected Contraband Ferrous and non-ferrous metal weapons
Enclosure Material Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
Power supply AC100V to 240V (DC12V/3A)
Input Voltage DC12V
Operating Current 1.5A
Operating Power 18W
Operating Time (Estimated) 24/7 operation capability (continuous operation)
Operating Frequency 5.7KHz ~ 9.6KHz
Operating temperature 20°C ~ 55°C
Storage Temperature -25°C ~ 60°C
Operating Humidity <95% RH (non-condensing)
Ingress Protection Rating
N/A (waterproof and dustproof)
N/A (vandal resistant)
Application Environment Indoor
Dimensions (L*W*H) 2226 * 844 * 579 (mm)
Lane Size (L*W*H) 2011 * 710 * 499 (mm)
Dimensions with Packaging (L*W*H) 2266 * 660 * 270 (mm)
Weight
Gross Weight: 50kg
Net Weight: 44kg
Interface
Relay Output: YES
Network Interface: YES
Supported Software ZK Metal Detector (Android OS & Windows OS ), ZKBio SIS
Certifications CE, FCC, ISO9001
Remote Control YES
