ZKTeco VT07-B22L Smart Video Indoor Monitor
ZKTeco VT07-B22L Smart Video Indoor Monitor

ZKTeco VT07-B22L Smart Video Indoor Monitor

Contact

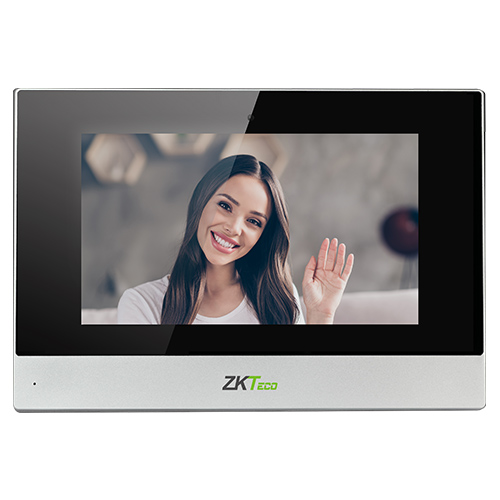

ZKTeco’s VT07-B22L video door phone is the perfect choice for apartment buildings, providing a modern video communication solution based on the Linux operating system. With VT07-B22L, you will experience many superior features such as internal communication via audio and video, making emergency calls, security alarms, and main door opening control.

In particular, this device integrates perfectly with the elevator control system and supports communication via SIP 2.0 protocol with IP phones and IP-PBX solutions, ensuring maximum connectivity and security for your home.

Categories: , , ,

Description

Specifications:

Physical Parameters

OS Linux

RAM 64 MB

ROM 128 MB

Front Plastic

Power Supply PoE (IEEE802.3af ) or DC 12V/2A

Backup Power Supply 1.5 W

Rated Power 9 W

TF Card Slot No

USB Port No

Ethernet Port 1 x RJ45, 10/100Mbps auto-adaptation

RS485 1

Doorbell Input Maximum 8 input ports

Alarm Input
Support 8 sensor zones: smoke, gas, PIR, door, window, emergency alarm and flood

Installation Method Wall-mounted (on flat surface)

Application Environment Indoor

Dimensions 221.4 * 151.4 * 16.5( mm)

Operating Temperature -10°C to +55°C

Storage Temperature -10°C to +60°C

Operating Humidity 10% to 90% (non-condensing)

Display Specifications

Display 7-inch TFT LCD

Screen Capacitive Touch Screen

Resolution 800 x 480

Audio

Audio Codec G.711

Echo Cancellation Yes

Rated Power 10W

DTMF RFC2833

Microphone Built-in Microphone

Speaker Built-in Speaker

Video H.264

Network

Protocols
SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP

Product Packaging

Packaging
– VT07-B22L (Power adapter not included)
– Bracket
– Screw Set
– Instructions use
