ZKTeco VK07-B51L Kit PoE Video Intercom Kit
ZKTeco VK07-B51L Kit PoE Video Intercom Kit

ZKTeco VK07-B51L Kit PoE Video Intercom Kit

Contact

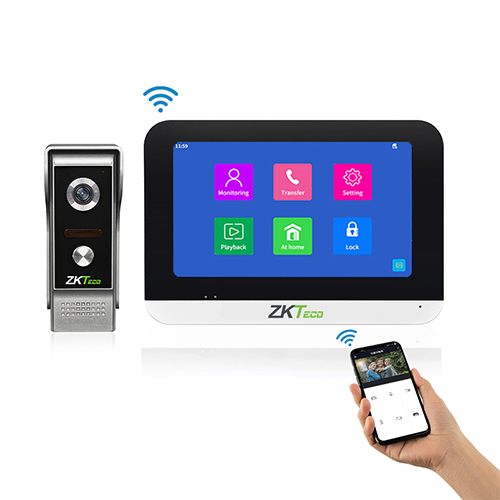

The VK07-B51L Video Doorbell Kit is the perfect solution for villas, providing optimal security and convenience. The product set includes an indoor monitor, an outdoor doorbell camera, and accompanying installation accessories. When guests arrive and press the call button, the homeowner can easily observe, communicate with guests, and unlock the door with just one simple operation.

In particular, this video doorbell system also allows the homeowner to control it remotely via mobile phone, even when not at home. Using the VK07-B51L Video Doorbell Kit not only enhances security, but also brings outstanding convenience to daily life.

Categories: , , ,

Description

Specifications:

Doorbell Camera Specifications

Operating System Linux

Video Compression Standard H.264

Image Sensor 1/2.7”2MP CMOS

Wide Dynamic Range (WDR) Yes (120°)

Maximum Viewing Angle 138° (Horizontal), 105° (Vertical)

Day / Night Color Image

Minimum Illumination 0.001 Lux

Audio Input Microphone*1 (Omnidirectional)

Audio Output Built-in Speaker

Two-Way Talk Supports 2-way talk

Communication
Wi-Fi (IEEE 802.11 a/b/g) @ 2.4 GHz
RS485: ZKTeco RS485*1

IP Protection IP55

Installation Method
Recessed (Flat Surface);
Rain Cover*1

Case Material Aluminum Alloy

Power Supply
12 VDC, 2A; PoE (IEEE 802.3af/at)
Power supplied by indoor monitor

Power Consumption Standby≤2 W; Operating≤7 W

Operating Temperature –30 °C to +60 °C

Operating Humidity 0% to 95% RH (Non-condensing)

Dimensions 125*45*27 (L*W*D)

Weight 0.25kg

Doorbell Display Specifications

Operating System Linux

Resolution 1024*600

Power Supply PoE (IEEE 802.3 af/ at) DC 15V/1.2A

Backup Power ≤1W

Operating Power ≤10 W

TF Card Max 64GB

Virtual Button on Touch Screen

Interface Network Cable Port*1

Support Wifi (IEEE 802.11 a/b/g) @ 2.4 GHz

Unlock Signal Output *1 NO Port / NC

Installation Method Wall Mount

Mobile App Support ZSmart

Material Tempered Glass + ABS Plastic

Size 195*132*18(mm)

Infrared (IR) Light Support 10m IR night vision
