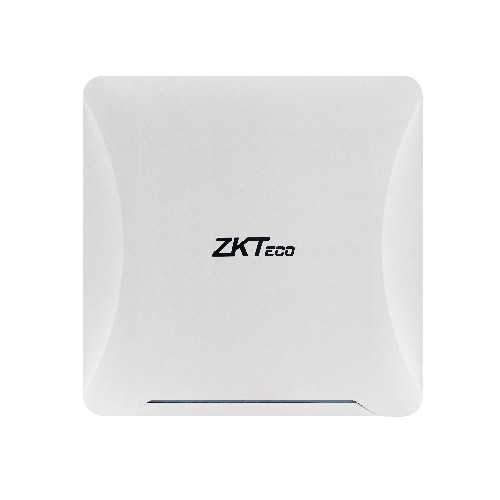

ZKTeco UHF5 Pro & UHF10 Pro UHF RFID Readers
Contact
UHF5 Pro and UHF10 Pro are ZKTeco’s third generation UHF readers, with more stable performance, longer reading distance and faster identification speed. The UHF readers are equipped with passive UHF tag function, which can be widely used in Vehicle Management and Personnel Management applications. The products also meet CE, FCC technology requirements.
Description
Specifications:
Dimensions 308.5 * 308.5 * 67.5
Weight 1.8kg
Power Supply 1.2 – 4.2W
Frequency
E: 865MHz – 868MHz
F: 902MHz – 906MHz (adjustable)
Communication Method Wiegand; RS485; USB Configuration Parameters (Wiegand, RS485 requires one of the two options)
Interface Protocol Global EPC UHF Class 1 Gen 2 / ISO 18000-6C
Operation Mode Always Read (default) & Read on Trigger
Output Power 19dBm – 30dBm
Protection Level IP66
Operation Voltage DC 9 – 15V
Storage Temperature & Humidity -20°C – 80°C, < 85%
Interface RS485 Baud rate selectable (9600, 19200, 38400, 57600, 115200); default is 115200
