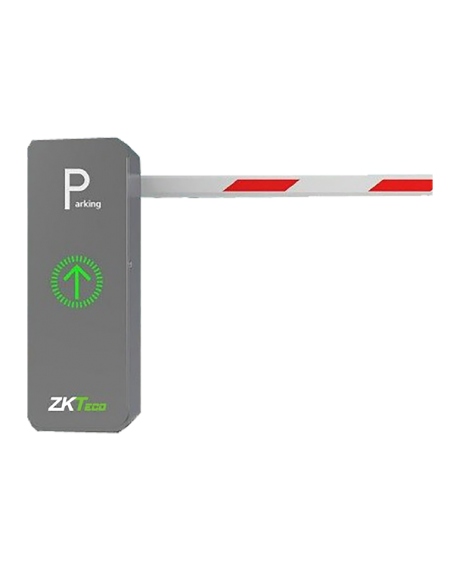

ZKTeco TDM500 Series
ZKTeco TDM500 Series

ZKTeco TDM500 Series

Contact

The TDM500 barrier gate is equipped with a high-performance, safe low-voltage DC brushless motor, which provides stable and reliable operation, and adopts digital coding control for efficient and sensitive response.

The all-in-one worm gear drive mechanism is easy to install and maintain, has good load-bearing capacity, and supports various types of barrier arms.

Categories: , , ,

Description

Specifications:

Model
TDM530L/R
TDM545L/R
TDM560L/R
TDM545L/R-LED
TDM545L/R-90
TDM545L/R-F

Operating Speed
TDM530L/R: 1.5s
TDM545L/R: 2.5s
TDM560L/R: 5s
TDM545L/R-LED: 2.5s
TDM545L/R-90: 3s
TDM545L/R-F: 3s

Boom Length
TDM530L/R: 3m
TDM545L/R: 4.5m
TDM560L/R: 6m
TDM545L/R-LED: 4.5m
TDM545L/R-90: 4.5m
TDM545L/R-F: 4.5m

Motor Type DC 24V brushless motor

Output Power 160W

Output Current 10A

Operating Voltages DC 24V

Power Supply AC 220V/110V, 50Hz to 60Hz

MCBF 2 million times

Remote Control Distance ≥30m

Protection Level IP54

Maximum torque 1 second: 1.4±0.2 N.M | 3 / 6 sec: 2.1 ± 0.1N.M

Boom Type
TDM530L/R: Straight boom
TDM545L/R: Telescopic boom
TDM560L/R: Telescopic boom
TDM545L/R-LED: Straight boom with LED
TDM545L/R-90: Folding boom
TDM545L/R-F: Fence boom

Spin speed 1400 RPM
