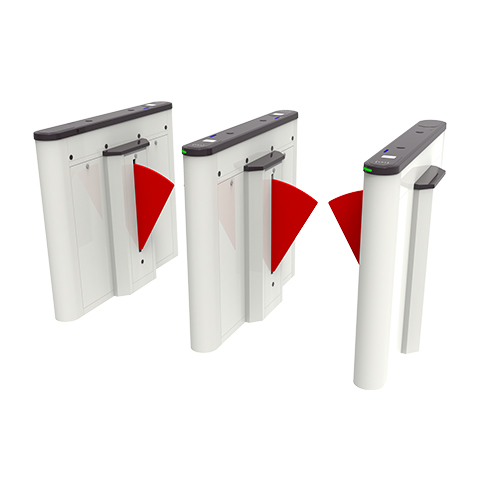

ZKTeco Saturn-F1000 Series Flap Barrier
ZKTeco Saturn-F1000 Series Flap Barrier

ZKTeco Saturn-F1000 Series Flap Barrier

Contact

The ZKTeco Saturn-F1000 flap barrier series is a highly efficient access control solution designed for both indoor and outdoor environments.

Featuring a robust cold-rolled SPCC steel frame and retractable polycarbonate (PC) flaps, the Saturn-F1000 ensures durability and safety while maintaining a modern appearance. Equipped with a brushless DC motor, the device allows for rapid opening and closing in under one second per operation.

The system integrates advanced features such as anti-pinch and anti-tailgating, along with various authentication methods including RFID, QR code, and facial recognition – flexibly meeting different security requirements. Additionally, the Saturn-F1000 is capable of handling high traffic flow: up to 30 people/minute with RFID or QR codes and 15 people/minute with facial recognition, making it an ideal choice for high-traffic areas.

Categories: , , , ,

Description

Specifications:

Audio Indicator Speaker
Visual Indicator LED Display: Blue = Standby, Green = Normal Use, Red = Door Closed
Display Screen N/A
Lane Type
Saturn-F1000: Single lane
Saturn-F1200: Dual lane for additional lanes – used with Saturn-F1000
Lane Width 550mm
Lane Height 1020mm
Barrier Movement Type Retractable Polycarbonate flaps
Motor Brushless DC Motor
Opening/Closing Speed Under 1 second
Movement Accuracy N/A
Clutch N/A
Cabinet Lid Material GB700 Cold-rolled SPCC steel
Lid Material Polycarbonate + 2.5D tempered glass
Infrared Sensors 5 pairs of sensors
Mainboard Functions System configuration, access mode configuration, anti-pinch configuration, anti-tailgating configuration, etc.
Mainboard Communication Fire alarm port (Relay) ×1, RS485 port ×1
Lid Options Authentication Method
Under-lid compact option: RFID / QR Code
Top-mounted pillar option: Facial Recognition (compatible with ProFace X / SpeedFace V5L / Elite Pass)
Frame Material Cold-rolled SPCC steel (GB700)
Frame Color White
Controller C3, InBio series, or third-party devices
Authentication Options
Under-lid RFID reader (supported models: ProID series)
Under-lid QR code reader: QR500
Top-mounted facial recognition: ProFaceX / Elite Pass / SpeedFace V5L
Throughput Rate RFID: 30 people/min; QR Code: 30 people/min; Facial Recognition: 15 people/min
Accessibility Standard Lane (550mm): Adults and children
Power Supply 110V / 220VAC @ 50-60 Hz
Power Consumption 0VA (Standby), 40VA (Operating)
Fire Alarm Signal Dry contact input for fire alarm systems
Noise Level Lower than 60dB
MTTR Under 60 minutes
MCBF 5 million cycles
Weight
Saturn-F1000: Gross (60kg), Net (50kg)
Saturn-F1200: Gross (35kg), Net (30kg)
Dimensions (LWH) 1200 * 306 * 1020 mm
Packing Dimensions 1345 * 360 * 1100 mm
Operating Temperature -20°C to 70°C
Operating Humidity 20% to 85% RH (non-condensing)
Certifications CE, FCC
Protection Level IPX4
Software Support ZKBio CVAccess / ZKBio CVSecurity (Depending on the access controller equipped)
Safety Features Infrared sensor detection; 24V DC logic voltage; Dry contact input for fire alarm; Auto-open during power failure
Security Features Anti-intrusion, anti-tailgating, wrong-way warning; Auto-close when no passage is detected
Product Delivery Pre-assembled
Application Environment Indoor / Outdoor
Site Preparation Finished flat floor (Base plate option available for unfinished floors)
Security Level Medium
Emergency Mode Supported (automatic opening)
Packing Material Carton box
