ZKTeco inBIO160 Package B

Description

Specifications:

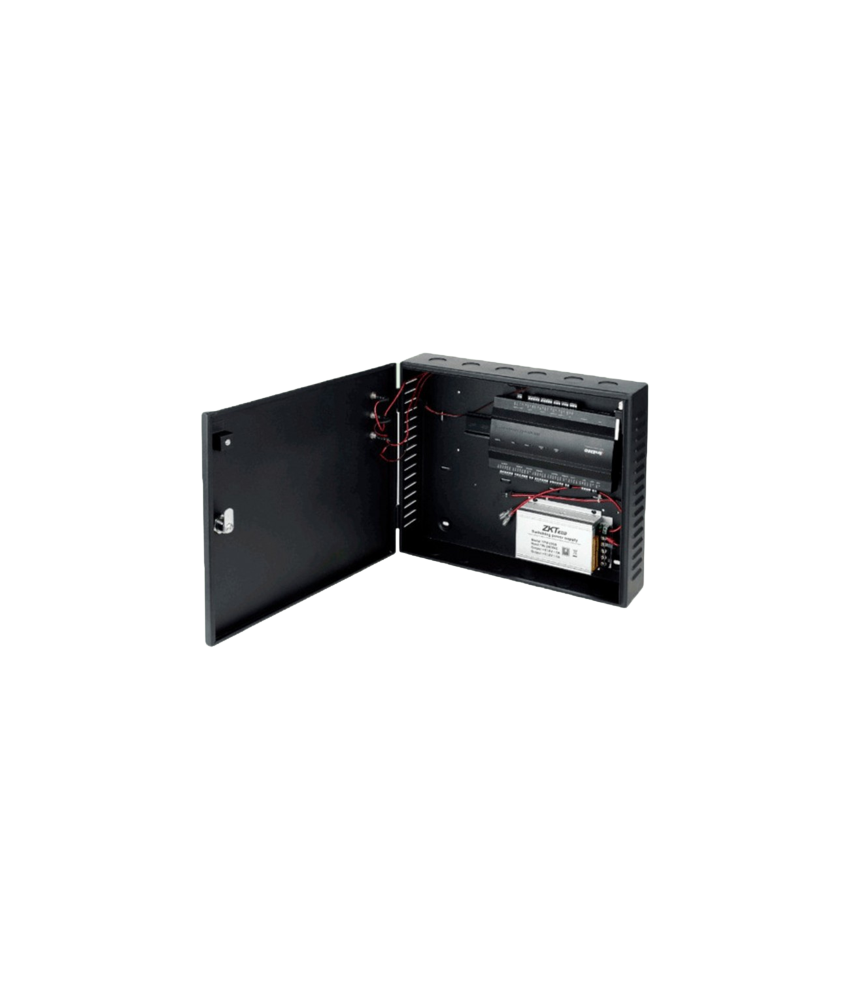

(A package of inBIO160 including Metal box and PSU(Power Supply Unit))

Number of control doors: 1 door

Number of readers: 4 (2 RS-485 readers, 2 26-bit wiegand readers)

Supported reader types: 26-bit wiegand and RS485 FR line readers

Number of inputs: 3 (Exit device and Door status, 1 AUX)

Number of outputs: 2 (1-Form C Relay for lock and 1 Form C Relay for Auxiliary output)

Card capacity: 30,000

Fingerprint capacity: 3,000 (Optional 20,000)

Event log capacity: 100,000

Communication: TCP/IP and RS-485

Packing size: 350 (L) × 90 (H) × 300 (W) mm

Package weight: 3.6kg

CPU: 32 bit 400MHz CPU

RAM: 32M

Flash memory: 128M

Power supply: 9.6V – 14.4V DC

Operating temperature: 0 – 45 °C

Operating humidity: 20% to 80%
