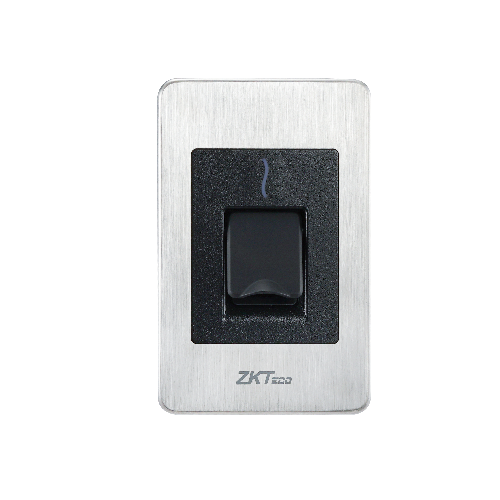

ZKTeco FR1500S Flush-Mounted RS-485 Fingerprint Reader
Contact
Features:
• Z-ID fingerprint sensor
• Standard single junction box installation
• RS485 communication interface
• Stainless steel front cover
• IP65 protection rating; completely dust tight and splash proof from all directions
• Flush mount design for neat installation
Description
Specifications:
Operating Temperature -10°C to 45°C
Operating Humidity 20% to 95%
Dimensions 121.3 × 77.3 × 38 (mm) (L*W*H)
Algorithm Version ZKFinger V10.0
Net Weight 14.2g
Gross Weight 24.4g
Power Supply DC 12V
Standby Power Consumption 12V * 60mA = 0.72W
Fingerprint Scan Peak Current 140mA
Hardware 1.0GHz CPU, Z-ID Sensor, Buzzer Reminder, 3-color indicator
Compatible inBio/inBioPro Controller, Standalone Fingerprint Device
Standard Function 125KHz RFID Card
Function Optional HID Prox 125KHz Card, IC Card 13.56MHz(S50 / S70), HID Iclass 13.56MHz Card
Communication RS485
