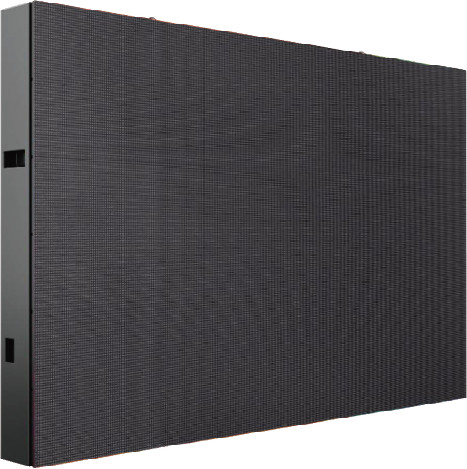

ZKTeco DGLED-Indoor Full-Color LED Display

Description

Specifications:

Model
DG01-A2P25
DG01-A2P40
DG01-A2P60
DG01-A2P80

Cabinet Parameters

Module Components
DG01-A2P25: 3*6
DG01-A2P40: 3*6
DG01-A2P60: 4*2
DG01-A2P80: 3*6

Dimensions
DG01-A2P25: 960*960*100mm
DG01-A2P40: 960*960*100mm
DG01-A2P60: 768*384*100mm
DG01-A2P80: 960*960*100mm

Resolution
DG01-A2P25: 384*384
DG01-A2P40: 240*240
DG01-A2P60: 160*160
DG01-A2P80: 120*120

Total Weight 18KG

Maintenance Method Front maintenance for all parts

Cabinet Material Die-cast aluminum

Cabinet Flatness 0.1mm

Protection Level Front protection level IP65

Physical Parameters

Pixel Resolution
DG01-A2P25: 2.5mm
DG01-A2P40: 2.5mm
DG01-A2P60: 6.0mm
DG01-A2P80: 8.0mm

Module Size
DG01-A2P25: L320 * H160 * T17.2mm
DG01-A2P40: L320 * H160 * T17.2mm
DG01-A2P60: L192 * H192 * T16.1mm
DG01-A2P80: L320 * H160 * T17.2mm

Module Resolution
DG01-A2P25: 128*64dots
DG01-A2P40: 80*40dots
DG01-A2P60: 32*32dots
DG01-A2P80: 40*20dots

Module Weight
DG01-A2P25: 380±10g
DG01-A2P40: 410±10g
DG01-A2P60: 330±10g
DG01-A2P80: 420±10g

LED Package
DG01-A2P25: 1415SMD
DG01-A2P40: 1921SMD
DG01-A2P60: 3535SMD
DG01-A2P80: 3535SMD

Pixel Configuration 1,1,1R/G/B

Pixel Density
DG01-A2P25: 160000Dot/㎡
DG01-A2P40: 62500Dot/㎡
DG01-A2P60: 27777Dot/㎡
DG01-A2P80: 15625Dot/㎡

Scan Mode
DG01-A2P25: 1/16 scan
DG01-A2P40: 1/10 scan
DG01-A2P60: 1/8 scan
DG01-A2P80: 1/5 scan

Port Type HUB75

Optical Parameters

Brightness Balance
DG01-A2P25: ≥5000cd/㎡
DG01-A2P40: ≥5000cd/㎡
DG01-A2P60: ≥6000cd/㎡
DG01-A2P80: ≥5000cd/㎡

Color Temperature ≥10000K

Viewing Angle 120°(W) 120°(H)Deg.

Module Power Consumption
DG01-A2P25: ≤30W
DG01-A2P40: ≤40W
DG01-A2P60: ≤25W
DG01-A2P80: ≤30W

Processing Power

Continuous Control Mode

Frame Rate ≥60Hz

Refresh Rate ≥1920 Hz

Color Scale / Grayscale ≥16.7M colors

Usage Specification

MTBF ＞5000 hours

Endurance 100000 hours

Operating Temperature 10~60 degrees C
