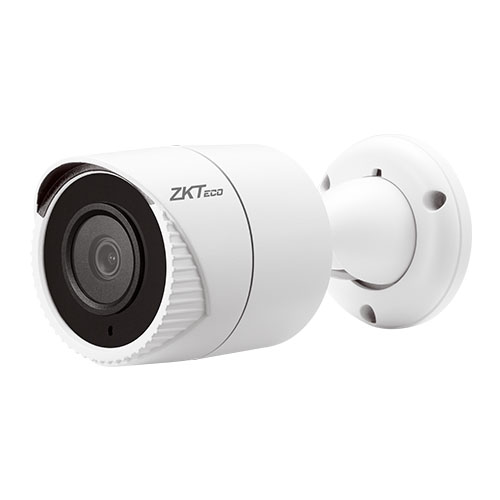

ZKTeco BS-854N23B-S7
ZKTeco BS-854N23B-S7

ZKTeco BS-854N23B-S7

Contact

The Lite series provides an affordable solution for high-quality video surveillance in various scenarios, thanks to advanced technology. Each device has P2P cloud function for easy and flexible real-time remote viewing and monitoring.

Features

  • 1/3″ CMOS sensor
  • IP camera resolution: 4MP (2560*1440)@20fps
  • H.264/H.265 dual-stream encoding
  • High-quality optical lens: 6mm
  • IR effective range 30m
  • Built-in PoE
  • Intelligent video analytics available
  • Multiple web browsers supported
  • Remote viewing with mobile app or VMS
  • IP67 metal housing
  • DWDR support
Categories: , , , ,

Description

Specifications:

CAMERA

Model BS-854N23B-S7

Image Sensor 1/3”CMOS Sensor

Effective Pixels 2560*1440

Min. Illumination
Color: 0.01Lux@F1.6 (AGC ON)
B/W: 0.001Lux@F1.6 (IR ON)

Flash / DDR 128MB / 512MB

IR LED No. 2

IR Distance 30m

S/N Ratio >52dB

LENS

Lens Type Fixed

Mount Type Board-in

Focal Length 6mm

Aperture F1.6

FOV 56°

Optical Zoom N/A

VIDEO

Compression H.265, H.264

Resolution 4MP (2560 x 1440) / 3MP(2304 x 1296) / 1080P (1920 x 1080) /1.3MP (1280 x 960) / 720P (1280 x 720)

Bitrate Control CBR / VBR

Bitrate 1792Kbps ~ 6Mbps

Multi-Streaming
Main Stream: 4MP@20fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream: D1@25fps / VGA@25fps /CIF@25fps
Third Stream: N/A

Motion Detection Support

Digital Zoom Support

Audio Compression G.711u

Privacy Mask 4 areas

WDR DWDR

Day / Night Support

White Balance Support

Defog N/A

Noise Reduction 2D/3D DNR

Mirror / Flip Support

Corridor Mode Support

HLC Support

BLC Support

ROI 4 areas

Anti-flicker N/A

IVA

Intelligent Video N/A

FACIAL DETECTION

Face Templates N/A

Face Detected Per Frame N/A

Detected Face Size N/A

Face Quality Filtering N/A

Detection Area N/A

Capture Response N/A

NETWORK

Protocol
TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS

Interoperability ONVIF Profile S, SDK, API

Max. Online Users 3

Web Browser IE / Firefox / Chrome / Safari

Management Software (VMS)
AntarVis 2.0
ZKBioSecurity IVS
ZKBioAccess IVS

Operation System Windows

Mobile APP AntarView Pro

P2P Cloud Service Support

INTERFACE

Ethernet 1*RJ-45 port (10/100Mbps)

Audio I/O N/A

Alarm I/O N/A

RS485 N/A

Reset Button N/A

Micro-SD Slot N/A

ANR N/A

USB N/A

GENERAL

Power Supply PoE (IEEE802.3af ), DC 12V±10%

Power Consumption <3W

Dimensions 145 * 65 * 65 (mm)

Ingress Protection Rating IP67

Operating Temperature -30°C ~ 60°C

Operating Humidity 10% ~ 90%

Net Weight 0.36kg

Gross Weight 0.46kg
