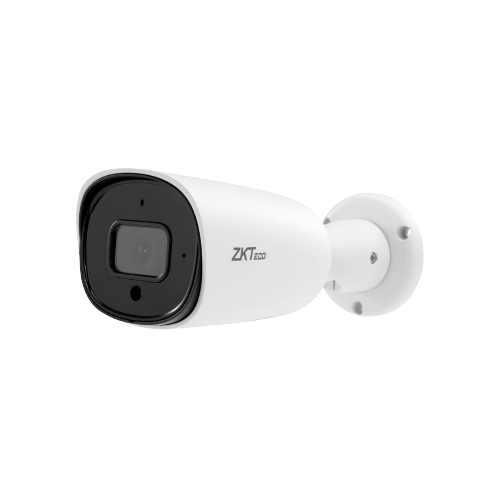

ZKTeco BS-852O22T-S5-MI
ZKTeco BS-852O22T-S5-MI
ZKTeco BS-852O22T-S5-MI
ZKTeco BS-852O22T-S5-MI
ZKTeco BS-852O22T-S5-MI

ZKTeco BS-852O22T-S5-MI

Contact

Lite Series is a super cost-effective solution powered by advanced technology for crystal clear video surveillance with embedded facial recognition algorithm. P2P cloud function is built-in for every device, allowing more convenient and flexible remote real-time viewing and monitoring.

Features

  • 1/2.9″ CMOS sensor
  • IP camera resolution: 2MP (1920*1080)@25fps.
  • H.264/H.265 dual stream encoding
  • High quality optical lens: 3.6mm
  • 30m IR effective range
  • Built-in PoE
  • Embedded facial recognition algorithm
  • Intelligent video analytics available
  • Multiple web browsers supported
  • Remote viewing with mobile app or VMS
  • IP67, IK10 metal housing
  • Support DWDR,BLC, ROI
  • Built-in Microphone and SD Card slot (256GB)
Categories: , , , ,

Description

Specifications:

CAMERA

Model BS-852O22T-S5-MI

Image Sensor 1/2.9” CMOS

Effective Pixels 1920*1080

Min. Illumination
Color: 0.5Lux@F2.0 (AGC ON)
B/W: 0.001Lux@F2.0 (IR ON)

Flash / DDR 16Mb / 512Mb

IR LED No. 4

IR Distance 30m

S/N Ratio ≥50dB

LENS

Lens Type Fixed

Mount Type Board-in

Focal Length 3.6mm

Aperture F2.0

FOV 90°

Optical Zoom N/A

VIDEO

Compression H.265 / H.264

Resolution
1080P (1920 × 1080)
1.3M (1280 × 960)
720P (1280 × 720)

Bitrate Control CBR / VBR

Bitrate
H.265: 128Kbps – 6Mbps
H.264: 128Kbps – 6Mbps

Multi-Streaming
Main Stream: 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream: D1@25fps / VGA@25fps / CIF@25fps
Third Stream: N/A

Motion Detection Support

Digital Zoom Support

Audio Compression G7.11u

Privacy Mask 4 areas

WDR DWDR

Day / Night Support

White Balance Support

Defog N/A

Noise Reduction 2D/3D DNR

Mirror / Flip Support

Corridor Mode Support

HLC Support

BLC Support

ROI 4 areas

Anti-flicker N/A

IVA

Intelligent Video N/A

FACIAL DETECTION

Face Templates N/A

Face Detected Per Frame N/A

Detected Face Size N/A

Face Quality Filtering N/A

Detection Area N/A

Capture Response N/A

NETWORK

Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP

Interoperability ONVIF, SDK, API

Max. Online Users 3

Web Browser IE / Firefox / Chrome / Safari

Management Software (VMS) AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS

Operation System Windows

Mobile APP AntarView Pro

P2P Cloud Service Support

INTERFACE

Ethernet 1 RJ-45 port (10/100Mbps)

Audio I/O Built-in Mic for audio in

Alarm I/O N/A

RS485 N/A

Reset Button Support

Micro-SD Slot Support (max. 256GB)

ANR Support

USB N/A

GENERAL

Power Supply PoE, DC 12V±10%

Power Consumption <3.7W

Ingress Protection IP67

Dimensions (L*W*H) 180.80 * 75.30 * 66.20 (mm)

Working Temperature -30°C ~ 30°C

Working Humidity 0% ~ 90%

Net Weight 0.40kg

Gross Weight 0.52kg
