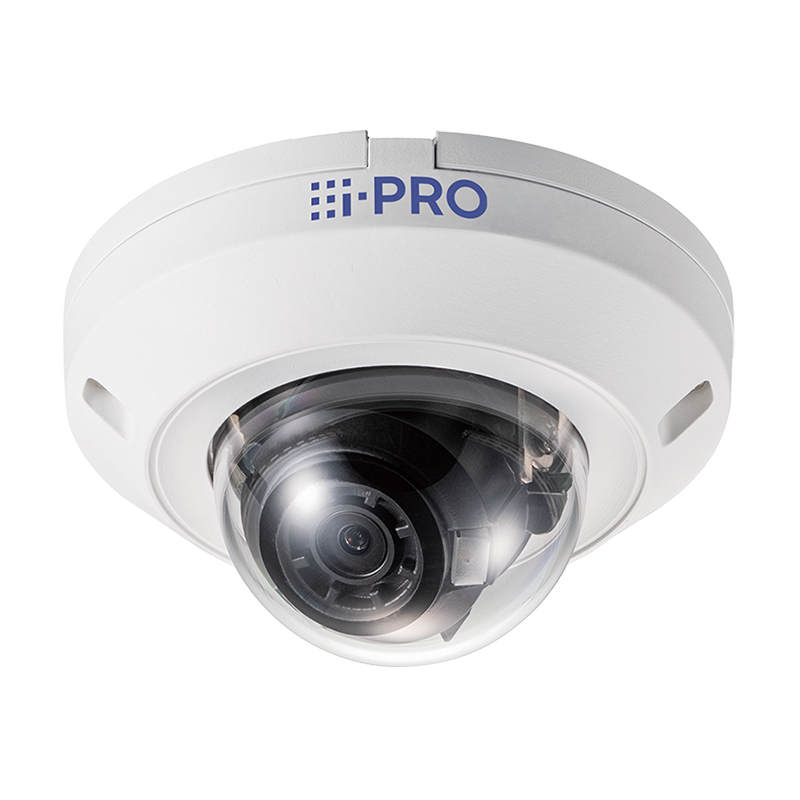

i-PRO WV-U2130LA

Description

Specifications:

Camera

Image Sensor Approx. 1/3 type CMOS image sensor

Minimum Illumination
Color :
0.07 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.1 lx (50IRE, F2.0, 1/30s, AGC:11)
0.006 lx (50IRE, F2.0, 16/30s, AGC:11)*

BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.04 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0025 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value

White Balance ATW1/ ATW2/ AWC

Maximum Shutter
[30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s

Intelligent Auto On / Off

Super Dynamic On / Off, the level can be set in the range of 0 to 31.

Dynamic Range Max.120 dB (Super Dynamic : On, Level: 31)

Adaptive Black Stretch The level can be set in the range of 0 to 255.

Back Light Compensation/High Light Compensation
BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31.
(only when Super dynamic / Intelligent Auto : Off)

Fog Compensation
On/ Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)

Maximum Gain (AGC) The level can be set in the range of 0 to 11.

Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 30 m {Approx. 100 ft}

Digital Noise Reduction The level can be set in the range of 0 to 255.

Video Motion Detection (VMD) On / Off, 4 areas available

Scene Change Detection(SCD) On / Off, 1 areas available

Privacy Zone On / Off (up to 8 zones available)

Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°

Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)

Lens

Focal Length 3.2 mm{1/8 inches}

Optical zoom 1x

Extra zoom 1.0x – 1.5x(when resolution is 1280×720)

Digital (electronic) zoom Choose from 3 levels of x1, x2, x4

Angular Field of View
[16 : 9 mode] Horizontal : 97° Vertical : 53°
[ 4 : 3 mode] Horizontal : 71° Vertical : 53°

Maximum Aperture Ratio 1 : 2.0

Focusing Range 1 m {39-3/8 inches} – ∞

Dori

Detect (25ppm / 8ppf) 37.5 m / 122.9 ft

Observe (62.5ppm / 19ppf) 15.0 m / 49.2 ft

Recognize (125ppm / 38ppf 7.5 m / 24.6 ft

Identify (250ppm / 76ppf) 3.7 m / 12.3 ft

Adjusting Angle

Adjusting Angle Horizontal (PAN) angle: -175 °– +175 °, Vertical (TILT) angle: -30 °– +80 °, Azimuth (YAW) angle: ±100°

Browser GUI

Camera Control Brightness

GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network

Network IF 10Base-T / 100Base-TX, RJ45 connector

Resolution H.265/H.264
[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA

H.265/H.264
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port(AUTO) / Unicast port(MANUAL) / Multicast
[Max. frame rate foreach stream]
Stream(1) : 1920×1080(30fps) / 1280×720(30fps) / 1600×1200(30fps)
Stream(2) : 640×360(30fps) / 1280×720(30fps) / 640×480(30fps)
Stream(3) : Off / Off / Off
JPEG(1) : 1920×1080(1fps) / 1920×1080(1fps) / 1600×1200(1fps)
JPEG(2) : 1280×720(1fps) / 1280×720(1fps) / 1280×960(1fps)

JPEG [Image Quality]10 steps

Smart Coding
GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
*Frame rate control and Advanced are only available with H.265.
AUTO VIQS: On/ Off

Audio Compression –

Audio Transmission Mode –

Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS,
NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

Secure Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption

SDXC/SDHC/SD Memory Card (Option)
H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB

Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals

ONVIF® Profile G / S / T

Alarm

Alarm Source VMD alarm, SCD alarm, Command alarm

Alarm Actions
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output

Input/Output

Audio input –

Audio Output –

External I/O Terminals –

Monitor Output –

General

Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035

Power Source and Power Consumption
PoE (IEEE802.3af compliant) Device :
DC48 V 100 mA, Approx. 4.8 W (Class 2 device)

Ambient Operating Temperature
-10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}

Ambient Operating Humidity 10 to 90 % (no condensation)

Dimensions
ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}
Dome radius 30.5 mm {1-3/16 inches}

Mass (Approx.) 250 g {0.55 lbs}

Finish
Main body : Aluminum die cast / Polycarbonate resin, i-PRO white
Dome section : Polycarbonate resin, Clear
