Honeywell LM2-PCP06C
Honeywell LM2-PCP06C

Honeywell LM2-PCP06C

Contact

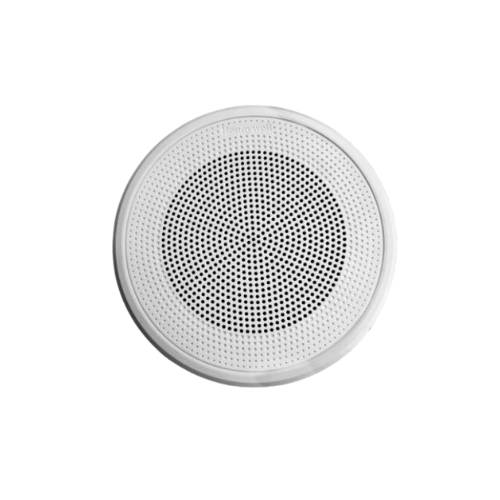

LM2-PCP06C is a 6W moisture-proof in-ceiling speaker. Its stylish design and sleek white finish blend in with almost any interior décor. The integrated backplate protects the internal components from water, and the ABS material prevents the speaker enclosure from rusting, making it an effective waterproof solution.

The optional rear dome has the same design as the backplate and prevents dust and falling objects from escaping.

At the same time, it prevents sound from spreading to adjacent areas through the ceiling cavity.

The backplate and dome are made of flame-retardant ABS material that meets UL94V0 expectations. All materials are also UL60065 and RoHS compliant.

• Excellent voice and music reproduction effect
• Fashionable design
• Simple power supply setting
• Easy installation
• Optional rear dome for choice
• Excellent moisture and dust resistance, comply with IP54 and IP55 (with rear dome)
• UL60065 and RoHS compliance

Categories: , , ,

Description

Specifications:

Electrical

Max power 9 W

Rated power 6 W

Power tapping 1.5 W/3 W/5 W/6 W

Sound pressure level at 6 W /1 W (1m, 150 Hz~18 kHz) 97 dB/89 dB

Effective frequency response range (-10 dB) 110 Hz ~ 20 kHz

Dispersion angle (1 kHz/4 kHz (-6 dB) 184°/90°

Rated input voltage 70V

Rated impedance 3.27kΩ/1.63kΩ/0.82kΩ

Connection 4-pole screw plastic block

Mechanical

Dimensions Ø180 mm x 73 mm

Hole cut-out size Ø160 +5 mm

Max. ceiling thickness 5 to 25 mm

Max. depth 70 mm

Weight 0.64 kg (1.41 lbs)

Color RAL9003

Speaker size 5″

Environmental

Operating temperature -25°C to +55°C (-13°F to 131°F)

Storage temperature -40°C to +70°C (-40°F to 158°F)

Relative humidity <95%
