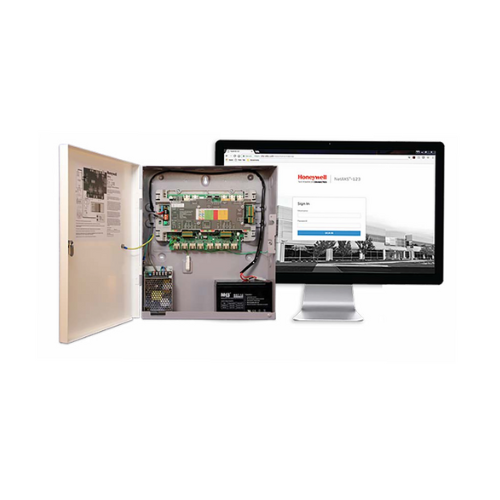

Honeywell MPA2 Access Control Panel
Honeywell MPA2 Access Control Panel

Honeywell MPA2 Access Control Panel

Liên hệ

Honeywell’s new MAXPRO® Access MPA2-Door controller provides solutions for installations of any size.

Danh mục: , , ,

Mô tả

Thông số kỹ thuật:

MPA2 READER/DOOR CONFIGURATIONS
SPECIFICATIONS   MPA2
Communications Built-in Communication Options Ethernet; RS-485; USB
 I/O Expansion Module
Connectivity		 Use RS-485 Port to connect a maximum of 2 downstream I/O modules (NX4)(4)
(Output or Input)
 Controller Loop Capability EVL: 16 MPA2 or NetAXS123 RS-485: 9 MPA2 and/or NetAXS123 panels total (8+1)(1,2)
Readers/Doors  Door/Reader Capability 2 Door/4 Readers – 4 Door/8 Readers(3)
 Expandability Expandable to 36 Doors/72 Readers per controller loop(1,2)
Reader Compatibility OSDP:V2 and Standard Wiegand Protocol supported
Outputs Number of Outputs  4 SPDT (jumper-selectable NO or NC contacts) per door rated at 3 A @ 28 VDC;
4 Open Collector outputs (OC) rated at 16 mA @ 12 VDC: Reader LED (Aux) and
Reader Buzzer (Aux) per door are available
Output Expandability  Expandable to 36 total outputs using max. 2 NX4 Relay Output Boards(4)
Relay Power Source  Selectable: 12 VDC Self-Powered source or 0–28 VDC externally supplied source
(USA only)
Inputs Number of Inputs 8 (+4) Configurable four-state supervised input points (Factory Default Settings are: Status, REX, Reader Tamper A, Reader Tamper B, Ext. Tamper, and General Input)
Input Expandability Inputs Expandable to 68 with max. 2 NX4IN Relay Input Boards(4) (USA only)
Panel Tamper (3X) Panel Door, Off-Wall and External Tamper
Power Inputs Unit Input 100 to 240 VAC, 50/60 Hz Input provides 13,8 VDC, 3.5 A Output, Battery Voltage Low Shutdown at 10.50V
Socket or Hardware AC Input (IEC) MPA1002UMPS only
Control Board Power Input 13,8 VDC (+/- 10%) from included Power Supply
 Power Outputs Power for Locks/Strikes/ Reader(s)/Input Devices 1,25 A per door for locks/strikes, Readers, and Input Devices (2,5A @ 12VDC Total)
Backup Battery System 12 VDC, 7 Ah Battery
 Enclosure Material Metal
Wiring Access Holes/Knockouts 24
 Installation Removable Terminal Blocks with Colour-coded Labels Battery/PSU
Graphic Wiring Info Cards/Labels Yes
Captive Mounting Hardware Yes
 System
 Information		 Real Time Clock Global Geographic Time Zone support; Daylight Saving Time support
Clock Synchronization Yes: via NTP Network Server
Processor IMX6-X1
System Mean Time Between Failures 250,000 Hours
Temperature Ratings Operating: 0°C to 49°C (32°F to 120°F) Storage: -55°C to 85°C (-67°F to 185°F)
Humidity 93% Non-Condensing
Lead Acid Batteries -40°C to 50°C (-40°F to 122°F)
Certifications and Approvals EMC/CE and FCC Compliant; UL 294 Listing, ULC319
Physical Dimensions 14.1 inch (360 mm) x 16.1 inch (410 mm) x 4.3 inch (110 mm)
Weight 6.0 Kg approx. (Battery not included – Includes Control Panel and Power Supply)
