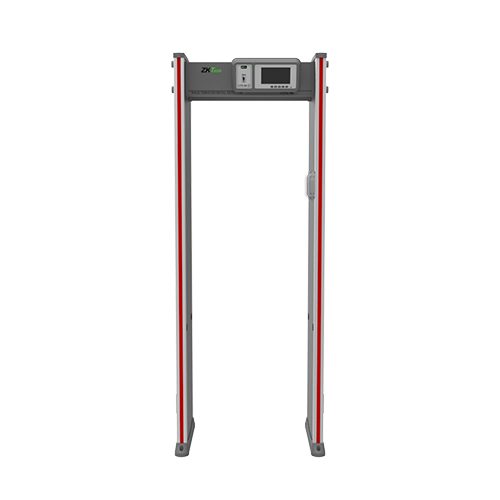

ZKTeco ZK-D3180V Walk Through Metal Detector with Embedded Camera
ZKTeco ZK-D3180V Walk Through Metal Detector with Embedded Camera

ZKTeco ZK-D3180V Walk Through Metal Detector with Embedded Camera

Contact

ZK-D3180V is a walk through metal detector designed for precise security detection. Featuring 18 detection zones with 500 adjustable sensitivity levels, it offers good accuracy to detect small threats while ensuring safe operation for the human body.

The ZK-D3180V uses technology to improve security inspection. Its embedded 2MP camera and 7-inch LCD display support live video, which assist the security personnel to track passenger detection process and study alarm statistics.

ZK-D3180V provides synchronized and and audio alerts with passenger image capture. Also, the anti-interference technology and comprehensive alarm records make it ideal for high-security venues, such as schools and corporate entrances. This metal detector is ideal for securing high-traffic areas such as schools, public venues, and corporate entrances.

Categories: , , , ,

Description

Specifications:

Display 7″ LCD Color Screen (800 * 480)
Physical Keypad 5 keys
Overhead Control Unit Live video, Photo (link up to 6 alarm records), Alarm Count, Pass Count, Channel, Date & Time, Battery Indicator
Photo Resolution 240*320
Camera Embedded monocular 2MP camera
Storage of Records >100,000
Detection Mode Automatic Detection Mode/ Infrared Detection Mode (default)
Maximum Detection Distance 20 mm – 2000 mm
Throughput 40 persons per minute
Sensitivity Level 500 levels
Detection Zones 18 zones
Power Supply AC100V to 240V (DC12V/3A)
Input Voltage DC12V
Operating Current 1.5A
Operating Power 18W
Operation Time (Estimated) 24/7 operation capability (continuous operation)
Alarm 16 Types of alarm tones (user selectable)
Alarm Volume 0 to 100 (Default value: 80)
Visual Indicators 2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red = metal contraband detected)
Detected Contrabands Ferrous and non-ferrous metal weapons
Self-Diagnosis Yes
Enclosure Material Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
Ingress Protection Rating
N/A (waterproof and dustproof)
N/A (vandal resistant)
Operating Temperature -20°C to 55°C
Storage Temperature -25°C to 60°C
Operating Humidity <95% RH (non-condensing)
Operating Frequency 5.7KHz to 9.6KHz
Dimensions (L*W*H) 2226 * 845 * 580 mm
Lane Size (L*W*H) 2000 * 710 * 498 mm
Dimensions with Packaging (L*W*H) 2280 * 347 * 660 mm
Weight
Gross Weight: 52kg
Net Weight: 47kg
Certifications CE,FCC, ISO9001
Supported Software ZKBio SIS / ZK Metal Detector
Accessories Remote Control
Application Environment Indoor
