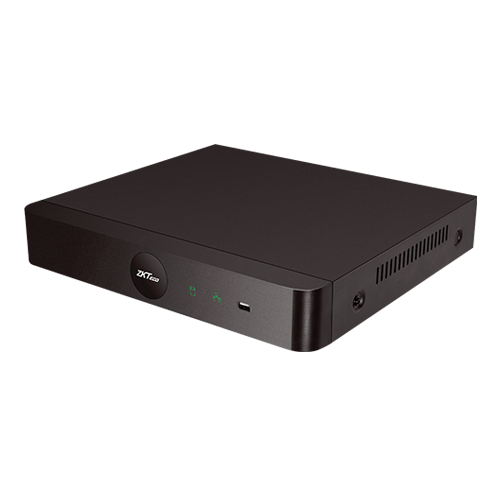

ZKTeco Z8504/08NER-4P/8P

Description

Specifications:

Model Z8504NER-4P / Z8508NER-8P

System

Processor Multi-core embedded processor

OS Embedded Linux

IVA Alarm

Local IVA Features Target Count, Object Detection, Intrusion, Tripwire

Regular Detection Motion Detection / Video Tampering / Video Loss

I/O Ports and Memory

Network Interface 1 RJ-45 port (10/100Mbps)

USB 2*USB 2.0

HDMI 1 * 1080P HDMI

VGA 1 * VGA

Alarm Input N/A

Alarm Output N/A

HDD 1 SATA, max 8TB for each hard drive

RAID N/A

PoE Port
Z8504NER-4P: 4
Z8508NER-8P: 8

Playback & Backup

Playback Channel 4

Search Mode IVA Search / Time / Motion Detection

Playback Features Play, Pause, Rewind, Rewind, Fast Forward 30s, Rewind 30s, Fast Play, Slow Play, Frame by Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

Backup Mode USB Device / Network

Video / Audio

Max. IPC Inputs
Z8504NER-4P: 4
Z8508NER-8P: 8

Audio Compression G.711a

Two-Way Talk N/A

Recording

Video Compression H.265+ / H.265 / H.264+ / H.264

Recording Resolution 5MP / 3MP / 1080P / 960P / 720P

Bandwidth Up to 40Mbps

Bit Rate 16K ~ 8Mpbs

Recording Mode Manual/External Alarm/Motion/Scheduled/IVA Alarm

Network

Network Protocol TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P

Online Users Up to 5

Mobile App AntarView Pro

Compatibility Onvif Profile S, SDK

Power Supply

Power Supply
Z8504NER-4P: DC 48V 1.5A
Z8508NER-8P: DC 48V 2.5A

Consumption 15W (Without HDD)

General Information

Operating Temperature -10℃ ~ +55℃

Working Humidity 10 ~ 90%

Dimensions 255mm * 210mm * 43mm

Net Weight 2.5KG

Gross Weight 3KG

Ordering Information

Product Type PoE NVR

Product Code Z8504NER-4P / Z8508NER-8P

Description
Z8504NER-4P: 4-channel 1 SATA PoE NVR
Z8508NER-8P: 8-channel 1 SATA PoE NVR
