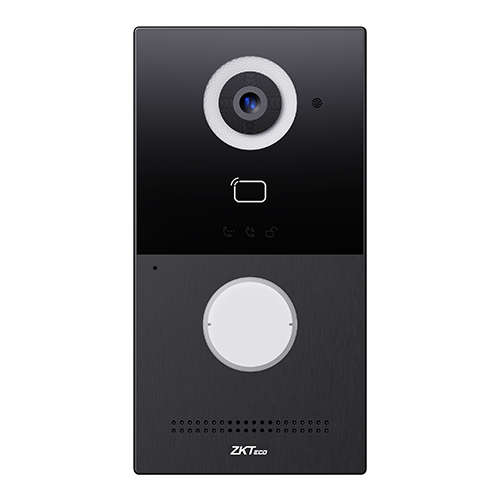

ZKTeco VE01-B25L Smart Video Outdoor Station

Contact

The ZKTeco VE01-B25L Video Doorbell Camera is a smart outdoor solution that combines video intercom and remote door access control. It supports IC and ID card unlocking, with large user and card capacity, meeting the needs of modern security systems.

With FHD CMOS sensor and digital WDR technology, the VE01-B25L delivers clear images even in low light conditions. White LEDs supplement the light to ensure optimal image quality. The device uses H.264 codec, ensuring efficient video transmission and storage, saving bandwidth.

In addition, the ZKTeco VE01-B25L also supports two-way communication, allowing visitor identity verification before granting access. The anti-tamper alarm feature will immediately notify of any intrusion. The system also integrates two relays, allowing connection and control of two door locks, along with Wiegand and RS485 ports, enhancing integration with other access control devices.

Designed with IP65 (waterproof, dustproof) and IK06 (vandalism) standards, the VE01-B25L ensures durable and reliable operation in all weather conditions, making it the top choice for advanced security solutions.

Description

Technical Specifications:

Physical Specifications

Operating System Linux

RAM 64 MB

ROM 128 MB

Front Aluminum + Tempered Glass

Power Supply PoE (IEEE 802.3af) or DC 12V/2A

Backup Power Supply 1.5 W

Rated Power 3.5 W

Camera 2MP, CMOS

Indicator 3

Wiegand Port 1

Ethernet Port 1 x RJ45, 10/100Mbps auto-adaptation

Door Control
IC Card (13.56MHz) & ID (125kHz)
(User Capacity: 20,000; Card Capacity: 60,000)

Card Reading Distance ≤ 3cm

Reset Button 1

RS485 Port 1

Relay Output Port 2

Input Port 2

IP Protection Level
IP65 (water and dust proof);
IK06 (vandal proof)

Installation Method Wall mount (on flat surface)

Dimensions 168 x 88 x 34 mm

Operating Temperature -40°C to +55°C

Storage Temperature -40°C to +70°C

Operating Humidity 10% to 90% (non-condensing)

Audio Codec G.711

Echo Cancellation Yes

DTMF RFC2833

Microphone Built-in microphone

Speaker Built-in speaker

Video

Video Codec H.264

Video Resolution 1280 x 720

Maximum Viewing Angle 110°(H) / 60°(V) / 125°(D)

Maximum Video Transmission Rate 720p – 25fps

LED Backlight (white)

Network Parameters

Protocols
ONVIF, SIP Version 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
