ZKTeco SF400
Contact

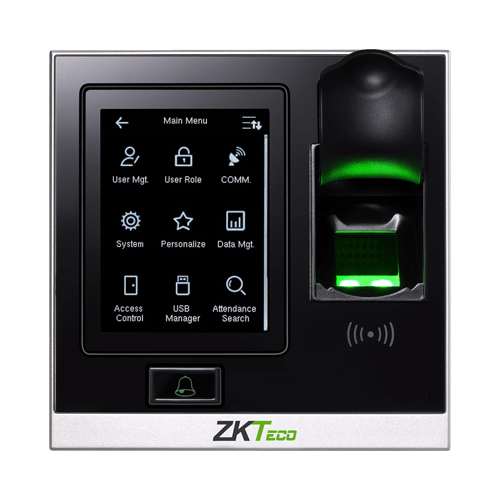

SF400 is an IP based fingerprint terminal with both Network and Standalone operation modes. It is connectible with ZKBio CVAccess software for access control and time attendance management. With Wiegand output, SF400 is flexible to connect with ZK or any 3rd party controllers as a slave reader. Wiegand input configures two SF400 units to utilize Master & Slave solution to enable users verification at both entrance and exit. Anti passback function is also enabled to maximize the security level.
Auxiliary input interface allows SF400 to connect with an extra source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device generates an alarm signal and opens doors in case of emergency.
Description
Parameters:
LCD 2.8 inch capacitive touch screen
Fingerprint Sensor Type (optional) ZK Optical Sensor (500DPI)
Algorithm Version ZKFinger V10.0
Communication TCP/IP, USB Host
Fingerprint Capacity 1,500
Record Capacity 80,000
Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Door Bell
Card Capacity 5,000 (EM/Mifare) (Optional)
Wiegand Signal Wiegand input & output
Aux. Input 1ea for linkage function
Power Supply DC 12V / 3A
Operating Temperature 0 ~ 45°C (32°~113°F)
Operating Humidity 20 ~ 80%
Dimension 105 x 105 x 32mm (L*W*H）
