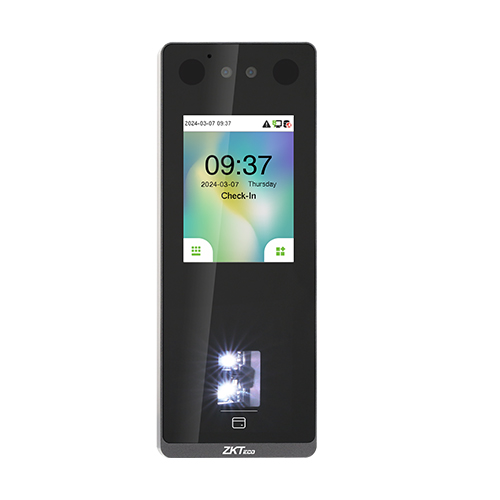

ZKTeco SenseFace 3 Series
Contact
SenseFace 3 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication. SenseFace 3 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol.
It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 3 Series supports multiple communication protocols. Its firmware has AC push and can convert to TA push and compatible with various AC or TA software. Also, it can change to the BEST protocol to link with ZKBio Zlink (AC module).
Description
Parameters:
Model
SenseFace 3A
SenseFace 3B
Display 2.8″ @ TFT Color Touch LED Screen (240*320)
Camera WDR Binocular Camera @ 1MP
Operation System Linux
Hardware
CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/ Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 3A)
Authentication Method
SenseFace 3A: Fingerprint / Face / Card / Password (Virtual Keypad)
SenseFace 3B: Face / Card / Password (Virtual Keypad)
Fingerprint Template Capacity
SenseFace 3A: 6,000 (1:N) (Standard)
SenseFace 3B: /
Face Template Capacity 3,000 (1:N) (Standard)
Card Capacity 6,000 (1:N) (Standard)
User Capacity 6,000 (1:N) (Standard)
Transaction Capacity 150,000 (1:N)
Max. User Password Length 8 Digits
Biometric Verification Speed
SenseFace 3A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)
SenseFace 3B: less than 0.35 sec (Facial Authentication)
Touchless Biometric Recognition Distance 30cm to 200cm (Facial Authentication)
False Acceptance Rate (FAR) %
SenseFace 3A: FAR ≤ 0.01% (Visible Light Facial Authentication) ; FAR ≤ 0.0001% ( Fingerprint )
SenseFace 3B: FAR ≤ 0.01% (Visible Light Facial Authentication)
False Rejection Rate (FRR) %
SenseFace 3A: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR ≤ 0.01% ( Fingerprint )
SenseFace 3B: FRR ≤ 0.02% ( Visible Light Facial Authentication)
Biometric Algorithm
SenseFace 3A: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
SenseFace 3B: ZKFace V4.0
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Communication
TCP / IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF
(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Optional Functions IC Card, Wi-Fi, Wireless Doorbell
Access Control Interface RS485 (RS485 Card Reader / Biometric Reader)
Power Supply DC 12V 3A
Operating Temperature -5°C to 45°C
Operating Humidity 10% to 90% RH (Non-condensing)
Dimensions 166 mm * 63 mm * 25 mm (L*W*H)
Net Weight 0.185 Kg
Supported Software
Software: ZKBio CVAccess / ZKBioTime
Mobile App: ZKBio Zlink / ZSmart
Cloud Service: ZKBio Zlink
Installation Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
Ingress Protection Rating IP65 (waterproof and dustproof )
Certifications ISO14001, ISO9001,CE, FCC, RoHS
