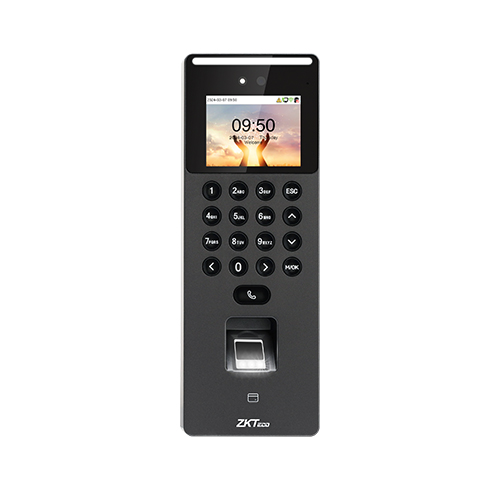

ZKTeco SenseFace 2A
Contact
SenseFace 2A adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.
SenseFace 2A is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (version 2.0).
Besides, SenseFace 2A supports multiple communication protocols. Its firmware has AC push and can convert to TA push to, it is compatible with various AC or TA softwares. Also, it can change to BEST protocol to link with ZKBio Zlink (AC module).
Description
Parameters:
Model SenseFace 2A
Display 2.4″@ TFT Color LCD Screen (320*240)
Camera WDR Binocular Camera @ 1MP
Operation System Linux
Hardware
CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32
dB/Impedance: 2.2kΩ)
Supplement Light: Yes
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor
Authentication Method Fingerprint / Face / Card / Password (Physical Keypad)
Fingerprint Template Capacity 3,000 (1:N) (Standard)
Face Template Capacity 1,500 (1:N) (Standard)
Card Capacity 3,000 (1:N) (Standard)
User Capacity 3,000 (1:N) (Standard)
Transaction Capacity 150,000 (1:N)
Max. User Password Length 8 Digits
Biometric Verification Speed
less than 0.5 sec (Fingerprint)
less than 0.35 sec (Facial Authentication)
Touchless Biometric Recognition Distance 30cm to 200cm (Facial Authentication)
False Acceptance Rate (FAR) %
FAR ≤ 0.01% (Visible Light Facial Authentication)
FAR ≤ 0.0001% (Fingerprint)
False Rejection Rate (FRR) %
FRR ≤ 0.02% (Visible Light Facial Authentication)
FRR ≤ 0.01% (Fingerprint)
Biometric Algorithm
ZKFace V4.0
ZKFingerprint V13.0 (Standard) /V10.0 (Optional)
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Communication
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
USB: Type A (USB Drive Only )*1
Electric Lock*1, Door Sensor*1, Exit Button*1
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Optional Functions IC Card, Wi-Fi, Wireless Doorbell
Power Supply DC 12V 1.5A
Operating Temperature -5°C to 45°C
Operating Humidity 20% to 80% RH (Non-condensing)
Dimensions 205.20 mm*74.19 mm*33.30 mm (L*W*H)
Net Weight 0.258 Kg
Supported Software
Software: ZKBio CVAccess / ZKBioTime
Mobile App: ZKBio Zlink
Cloud Service: ZKBio Zlink
Installation Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
Certifications ISO14001, ISO9001,CE, FCC, RoHS
