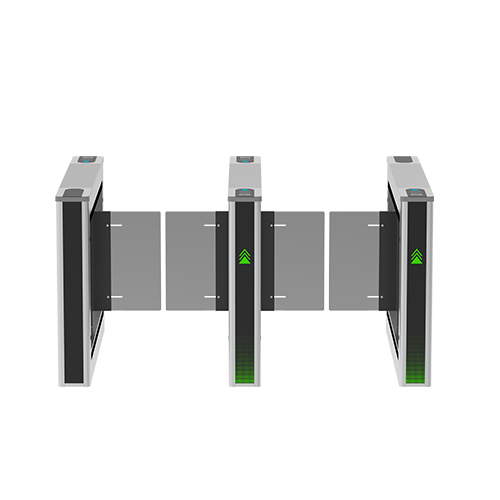

ZKTeco Saturn-S2000 Series Secure and Spacious Ultra Wide Lane Design for Motorcycle Access
ZKTeco Saturn-S2000 Series Secure and Spacious Ultra Wide Lane Design for Motorcycle Access

ZKTeco Saturn-S2000 Series Secure and Spacious Ultra Wide Lane Design for Motorcycle Access

Contact

Unveiling the ZKTeco Saturn-S2000, an innovative swing barrier turnstile designed for an unparalleled passage experience. The Saturn-S2000 offers tow models (S2000 and S2200). Its chassis is mainly made from stainless steel material(SUS304), providing an IP54 protection rating that ensures it can withstand water and dust. Also, Saturn S2000 is equipped with a clutch to enhance security.

The Saturn-S2000 has been upgraded with a notable feature: a standard 12 pairs of infrared sensors (expandable to 18 pairs) with integrated dual-zone pinch protection. It ensures enhanced safety and improved obstacle detection. Also, the authentication area is enhanced with 2.5D tempered glass for scratch resistance.

Saturrn-S2000 maintains its multi-authentication flexibility as before, with facial, QR code and RFID card verification. Additionally, Saturn-S2000 features an expanded 900-1200mm channel width with stainless steel swing barrier, specifically engineered to accommodate both pedestrians and two-wheeled motorcycles. The robust design maintains security while allowing smooth transit for authorized vehicles.

Categories: , , , ,

Description

Specifications:

Model
Saturn-S2000
Saturn-S2200
Audio Indicator Internal speaker
Visual Indicator
Top LED indicator:
Blue=Door closed/stand by
Green=Door opening
Red=Door closing/alarm
Side LED indicator
Green=Lane available
Red=Lane unavailable
Display NA
Lane Type
Saturn-S2000: Single lane
Saturn-S2200: Dual Swing (for additional lane)
Lane Width
600~900mm (Optional) (Ac rylic)
Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access)
Barrier Movement Type Swing
Motor DC brushless motor
Movement Speed Average 1s per movement (Adjustable open/close timing)
Movement Accuracy Middle
Clutch Equipped
Lid Material Stainless steel & Polycarbonate
Lid Options Authentication Methods
Streamlined under mount options: QR Code / RFID
Surface mount option: Facial Authentication
Chassis Material Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column)
Chassis Colour Gray(Standard)
Barrier Material Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required.
IR Sensors 12 pairs (standard) ;18 pairs (Optional)
Motherboard Function System configuration, access control
Motherboard Communication Fire alarm port (relay)*1, RS485 port*1,
Controller Compatible with C3 / InBio Series or 3rd-party controller.
Credential Options
Under mount RFID reader: (support model: Pro ID Series, KR Series)
Under mount fingerprint reader: FR1200/FR1500S
Flow Rate
Facial Authentication: 15 passengers per minute
QR Code: 30 passengers per minute
RFID: 35 passengers per minute
Accessibility Adult, children (with care), Disability (with care)
Power Supply 110V / 220V ±10% AC @50Hz/60Hz
Power Rating
20VA (Standby)
40VA (Operation)
Fire Signal Input for voltage free contact
Noise Level Less than 60dB
MTTR Less than 60 minutes
MCBF 5 million
Weight
Saturn-S2000: 100Kg (Net weight); 140Kg (Gross weight)
Saturn-S2200: 60Kg (Net weight); 100Kg (Gross weight)
Dimension (L*W*H) 1500*180*1020mm
Dimensions With Packing (L*W*H)
Saturn-S2000 1580 * 340 * 1270 (mm) (2pcs)
Saturn-S2200 1580 * 340 * 1270 (mm)
Operating Temperature -30 °C to 70 °C
Operating Humidity 5% to 90% RH (Non-condensing)
Certifications CE, FCC
Ingress Protection Rating IP54 (water & dust proof)
Supported Software ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)
Safety Features Voltage free contact input for re alarm fail state automatic swing barrier open during power off
Security Features Anti-tailgating, anti-pinch
Product Delivery Pre-assembled
Application Environment Indoor / outdoor (if sheltered)
Site Preparation Flat & level finished floor (base plate in options for unfinished floor)
Security Level Medium
Emergency Mode Support (swing barrier open automatically)
Packing Material Wooden
