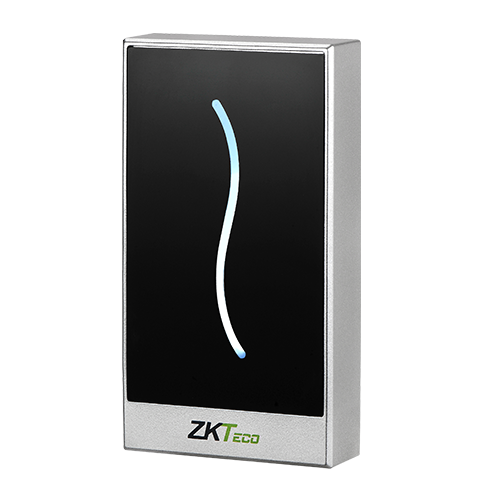

ZKTeco ProID Series Physical Access Readers
Contact
The ProID series of card readers are designed to provide customers with card technology options such as 125KHz EM, 13.56MHz IC, DESFire, FeliCa or Legic. With robust all-weather protection and a sleek modern design, the ProID series is the best choice for indoor or outdoor applications.
Description
Specifications:
Read Range
ProID10 EM / IC: 3.5cm
ProID20 / 30 / 40 EM / IC: 5cm
Reading Time ≤ 300ms
Input Port External LED Control / External Buzzer Control
Material ABS + PC
Output Format Wiegand 26bit or 34bit Adjustable
Operating Voltage 7 ~ 13V DC
Current Draw < 80mA
LED Pulsing White Standby Light / Red and Green LEDs
Operating Temperature -20 °C ~ 65 °C
Operating Humidity 10% ~ 90% Relative Humidity Non-Condensing
Audio Beep
Ingress Protection Rating IP65
Dimension
ProID10: 80.5 × 44 ×15mm
ProID20 / 30: 90 × 90 × 16mm
ProID40: 116 × 75 × 15mm
