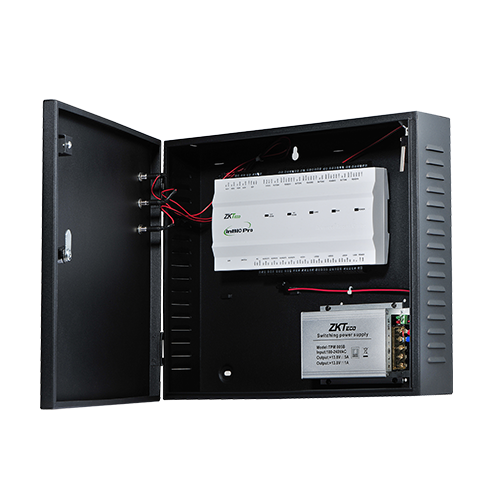

ZKTeco inBio460 Pro Box
Contact
InBio Pro Series is a high-end project-oriented product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication over LAN or WAN.
InBio Pro Series is fully compatible with ZKBioSecurity web-based software platform to provide a full-featured biometric security solution.
Combined with FR1300 RS485 reader, the panels can authenticate users by multiple verification modes such as fingerprint, card and password for a higher level of security.
Description
Specifications:
Four Doors Eight Ways Biometric Access Control Panel package with Power Supply and Metal Casing.
Firmware: Push SDK
Number of controlled doors: 4 doors
Number of supported readers: 12 (8 RS-485 readers, 4 Wiegand readers)
Supported reader types: 26-bit Wiegand and RS485 serial readers FR
Number of Inputs: 12 (4 Exit Buttons and 4 Door Status, 4 AUX)
Number of Outputs: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Card Capacity: 60,000
Fingerprint capacity: 20,000
Event log capacity: 100,000
Communication: TCP/IP
Hardware: 32 bit 400MHz CPU, 32MB RAM, 128MB Flash
Power: 9.6V-14.4V DC
Operating temperature: 0-45 °C
Operating humidity: 20% to 80%
Packing size: 350(L) × 90(H) × 300(W) mm
