ZKTeco InBio Pro Plus
ZKTeco InBio Pro Plus
ZKTeco InBio Pro Plus
ZKTeco InBio Pro Plus

ZKTeco InBio Pro Plus

Contact

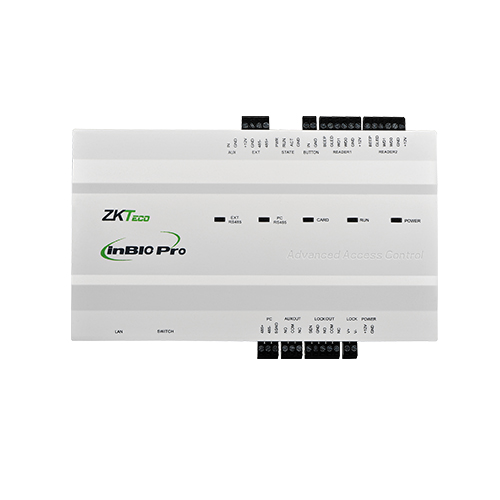

The ZKTeco InBio Pro Plus central controller is a high-end product, aimed at large projects with outstanding features such as integrated facial and fingerprint authentication, along with modern access control functions. With TCP/IP protocol, InBio Pro Plus allows flexible remote management over local area network (LAN) and wide area network (WAN), providing flexible and scalable deployment.

The product includes the InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus models, supporting up to 3,000 facial templates, 20,000 fingerprint templates, 100,000 card users, and 100,000 dynamic QR codes. The ZKTeco InBio Pro Plus series uses an RS-485 interface, supporting ZKTeco’s RS-485 protocol for facial readers (KF1100 Pro/ KF1200 Pro) and fingerprint readers (FR1200/ FR1500S). Furthermore, it is compatible with card readers using RS-485 and OSDP (Ver 2.1.7) protocols, and supports ZKTeco’s QR code readers (QR50/ QR500/ QR600).

With a Wiegand interface (W26/ W34/ W66), the InBio Pro Plus Central Controller also easily integrates with third-party access control readers. The system provides optimal data security with AES 256-bit encryption, while AES 128-bit encryption protects communication between RS-485 readers and the system via ZKTeco’s OSDP or RS-485. In addition, communication between the server and web client is also tightly secured via HTTPS / TLS1.2 encryption, ensuring absolute system security.

Categories: , , , ,

Description

Specifications:

Model
InBio160 Pro Plus
InBio260 Pro Plus
InBio460 Pro Plus

Operating System Linux

Hardware
CPU: Single Core@1.0GHz
RAM: 128MB; ROM:256MB;

Authentication Method Card / Password / Fingerprint / Face / QR Code

Access Point Capacity
InBio160 Pro Plus: 1 access point
InBio260 Pro Plus: 2 access points
InBio460 Pro Plus: 4 access points

Reader Capacity
InBio160 Pro Plus: *2 RS-485 readers (ZKTeco RS-485 / OSDP), *2 Wiegand 26/34/66 bit readers
InBio260 Pro Plus: *4 RS-485 readers (ZKTeco RS-485 / OSDP), *4 Wiegand 26/34/66 bit readers
InBio460 Pro Plus: *8 RS-485 readers (ZKTeco RS-485 / OSDP), *8 Wiegand 26/34/66 bit readers

IO Expansion Board Capacity 8 EX0808 sets (connection RS-485 connection)

User Capacity 100,000

Card Capacity 100,000 (1:N) (standard)

Fingerprint Template Capacity 20,000 (1:N) (standard)

Face Template Capacity 3,000 (1:N) (standard)

Dynamic QR Code Capacity 100,000 (Static QR Code / Dynamic QR Code)

Transaction Capacity 500,000 (standard)

Number of Inputs
InBio160 Pro Plus: 1 * Exit Button, 1 * Door Status, 1 * AUX Input or 64 Inputs (with 8 pcs EX0808 IO Expansion Boards)
InBio260 Pro Plus: 2 * Exit Button, 2 * Door Status, 2 * AUX Input or 64 Inputs (with 8 pcs EX0808 IO Expansion Boards) EX0808)
InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Input or 64 Input (with 8pcs EX0808 IO Expansion Boards)

Output Quantity
InBio160 Pro Plus: 1 * Form C Relay for Lock, 1 * Form C Relay for Aux Output or 64 Output (with 8pcs EX0808 IO Expansion Boards)
InBio260 Pro Plus: 2 * Form C Relay for Lock, 2 * Form C Relay for Aux Output or 64 Output (with 8pcs EX0808 IO Expansion Boards)
InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 Output (with 8pcs EX0808 IO Expansion Boards)

Maximum Tag Length
Supports tag length up to 66 bit

QR Code
Support scanning code: PDF417, Data Matrix, MicroPDF417, Aztec in third-party development projects. Dynamic QR code on ZKBio CVSecurity mobile app

Communication
InBio160 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Auxiliary Input * 1, Auxiliary Output * 1, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1
InBio260 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Auxiliary Input * 2, Auxiliary Output * 2, Electric Lock * 2, Door Sensor * 2, Exit Button * 2, Alarm * 2
InBio460 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Auxiliary Input * 4, Auxiliary Output * 4, Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4

Standard Functions
Web Server, Support User ID up to 14 Digits, Access Level, Access Group, Holiday Schedule, Anti-Card Rotation, Anti-Tailor, Linkage, Global Linkage, Multiple Authentication Methods

Access Control Interface
Wiegand (Card Reader),
RS-485 (RS-485 Card Reader / Fingerprint Reader / Face Recognition Reader / QR Code Reader)

Power Supply 9.6V- 14.4V DC

Operating Temperature 0°C to 45°C

Operating Humidity 20% to 80% RH (Non-Condensing)

Dimensions
InBio160 Pro Plus: 185.12 mm*106 mm*36.07 mm (L * W * H)
InBio260 Pro Plus: 185.12 mm*106 mm*36.07 mm (L * W * H)
InBio460 Pro Plus: 226 mm*106 mm*36.07mm (L * W * H)

Total Weight
InBio160 Pro Plus: 1.004 Kg
InBio260 Pro Plus: 1.037 Kg
InBio460 Pro Plus: 1.098 Kg

Net Weight
InBio160 Pro Plus: 0.390 Kg
InBio260 Pro Plus: 0.422 Kg
InBio460 Pro Plus: 0.494 Kg

Support Software ZKBio CVSecurity

Installation Method Support DIN Rail mounting / Wall mounting / Metal case (optional)

Box Metal (Optional)
InBio160 Pro Plus / InBio260 Pro Plus: Dimensions: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power supply: 110V~240V AC input, 12V 2A output; 1A DC; Backup battery: Reserved space; [Recommended backup battery size: (L*W*H):151 x 94 x 65 mm)]; Total weight: 3.57 Kg
InBio460 Pro Plus: Dimensions: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power supply: 110V~240V AC input, 12V 4A+1A DC output; Backup battery: Reserved space [Recommended backup battery; Dimensions: 151 x 94 x 65 mm(L*W*H)]; Total weight: 3.77 Kg

Certification ISO14001, ISO9001, CE, FCC, RoHS
