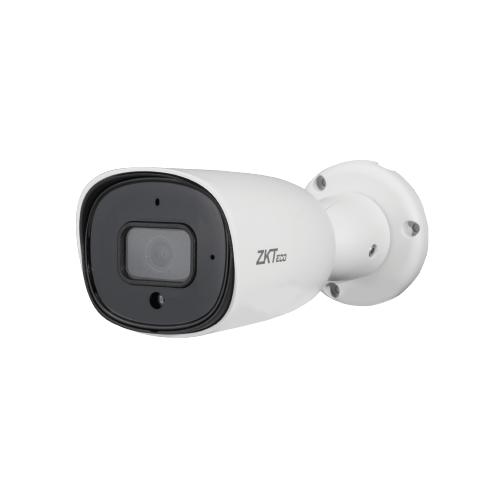

ZKTeco BS-852O22C-S5

Description

Specifications:

Model BS-852O22C-S5

Image Sensor 1/2.9” CMOS

Effective Pixels 1920 * 1080

Min. Illumination
Color: 0.5Lux@F2.0 (AGC ON)
B/W: 0.001Lux@F2.0 (IR ON)

Flash / DDR 16Mb / 512Mb

IR LED No. 2

IR Distance 30m

S/N Ratio ≥50dB

Lens

Lens Type Fixed

Mount Type Board-in

Focal Length 3.6mm

Aperture F2.0

FOV 90°

Optical Zoom N/A

Video

Compression H.265 / H.264

Resolution 1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720)

Bitrate Control CBR / VBR

Bitrate
H.265: 128Kbps – 6Mbps
H.264: 128Kbps – 6Mbps

Multi-Streaming
Main Stream: 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream: D1@25fps / VGA@25fps / CIF@25fps
Third Stream: N/A

Motion Detection Support

Digital Zoom Support

Audio Compression G7.11u

Privacy Mask 4 areas

WDR DWDR

Day / Night Support

White Balance Support

Defog N/A

Noise Reduction 2D/3D DNR

Mirror / Flip Support

Corridor Mode Support

HLC Support

BLC Support

ROI 4 areas

Anti-flicker N/A

IVA

Intelligent Video Face Detection

Face Templates N/A

Face Detected Per Frame 5

Detected Face Size 80×80 ~ 300×300 Pixels

Face Quality Filtering Support

Detection Area User-defined

Capture Response ≤200ms

Network

Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP

Interoperability ONVIF, GB28181

Max. Online Users 3

Web Browser IE / Firefox / Chrome / Safari

Management Software (VMS) AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS

Operation System Windows

Mobile APP AntarView Pro

P2P Cloud Service Support

Interface

Ethernet 1 RJ-45 port (10/100Mbps)

Audio I/O N/A

Alarm I/O N/A

RS485 N/A

Reset Button N/A

Micro-SD Slot N/A

ANR N/A

USB N/A

General

Power Supply PoE, DC 12V±10%

Power Consumption <3.7W

Ingress Protection IP67

Dimensions (L*W*H) 171 * 75 * 66 (mm)

Working Temperature -30°C ~ 60°C

Working Humidity 0% ~ 90%

Net Weight 0.36kg

Gross Weight 0.49kg
