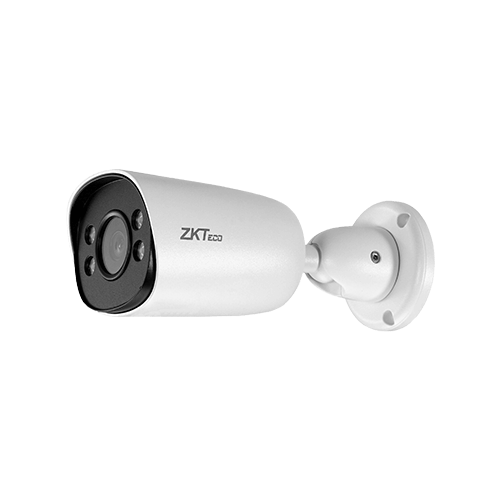

ZKTeco BS-852O11C-S5-C
ZKTeco BS-852O11C-S5-C

ZKTeco BS-852O11C-S5-C

Contact

Equipped with an advanced F1.0 large aperture lens and warm white LED illumination, ZKTeco Full Color series cameras deliver high-quality color images with rich details even in complete darkness. It promises to provide 24/7 authentic identification.

The Full Color series also provides multiple industry-leading Smart Face Detection functions for intelligent face deployment alerts.

P2P cloud function is built-in for all devices, which is convenient and flexible for real-time remote viewing.

Features

  • 24 hours 2MP full color IP camera
  • 1/2.9″ CMOS sensor
  • IP camera resolution: 2MP (1920*1080)@25fps
  • Minimum illumination: Color: 0.01Lux / F1.0
  • H.264/H.265 dual stream encoding
  • High quality optical lens: 2.8 mm
  • IR effective range 10-20m
  • Built-in PoE
  • Embedded facial recognition algorithm
  • Intelligent video analytics available
  • Multiple web browsers supported
  • Remote viewing with mobile app or VMS
  • IP67 metal housing
  • DWDR support
Categories: , , , ,

Description

Specifications:

CAMERA

Model BS-852O11C-S5-C

Image Sensor 1/2.9”2MP CMOS Sensor

Effective Pixels 1920 * 1080

Min. Illumination
Color: 0.0001Lux@F1.0 (AGC ON)

Flash / DDR 128Mb / 512Mb

White Lights No. 4

White Light Distance 20m

S/N Ratio > 52dB

LENS

Lens Type Fixed

Mount Type Board-in

Focal Length 2.8mm

Aperture F1.0

FOV 110°

Optical Zoom N/A

VIDEO

Compression H.265 / H.264

Resolution 1080P (1920 x 1080) / D1 (720 x 576)

Bitrate Control CBR / VBR

Bitrate
H.265: 16Kbps – 4Mbps
H.264: 80Kbps – 4Mbps

Multi-Streaming
Main Stream: 1080P@25fps
Sub Stream: D1 (720 * 576)@25fps / VGA (640 * 480)@25fps
Third Stream: N/A

Motion Detection Support

Digital Zoom Support

Audio Compression G7.11u

Privacy Mask 4 areas

WDR DWDR

Day / Night Support

White Balance Support

Defog Support

Noise Reduction 3D DNR

Mirror / Flip Support

Corridor Mode N/A

HLC Support

BLC Support

ROI 4 areas

Anti-flicker N/A

IVA

Intelligent Video Face Detection

FACIAL DETECTION

Face Templates N/A

Face Detected Per Frame 5

Detected Face Size 80 x 80 to 300 x 300 Pixels

Face Quality Filtering Support

Detection Area User-defined

Capture Response ≤ 200ms

NETWORK

Protocol
TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP / RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP

Interoperability ONVIF Profile S, SDK, API

Max. Online Users 3

Web Browser IE / Firefox / Chrome / Safari

Management Software (VMS) AntarVis 2.0

Operation System Windows

Mobile Application AntarView Pro

P2P Cloud Service Support

INTERFACE

Ethernet 1 RJ-45 port (10/100Mbps)

Audio I/O N/A

Alarm I/O N/A

RS485 N/A

Reset Button N/A

Micro-SD Slot N/A

ANR N/A

USB N/A

GENERAL

Power Supply PoE (IEEE802.3af ), DC 12V±10%

Power Consumption < 3W

Ingress Protection IP67

Dimensions (L*W*H) 171 * 75 * 66 (mm)

Working Temperature -30°C to 60°C

Working Humidity 10% to 90%

Net Weight 0.3kg

Gross Weight 0.45kg

ORDERING INFOMATION

Camera 2MP Camera

Model BS-852O11C-S5-C
