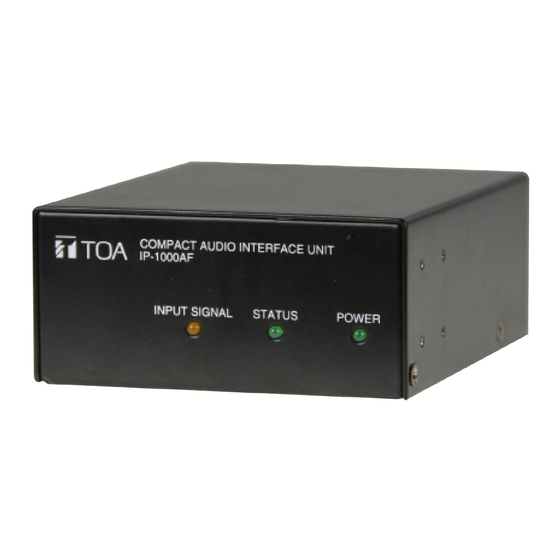

TOA IP-1000AF
TOA IP-1000AF

TOA IP-1000AF

Contact

IP-1000AF is an IP audio interface device, it can broadcast the signal received by the audio input interface to other terminals, and it can also receive the broadcast signal from other terminals and servers. It supports browser system settings.

Features

Can be mounted on various surfaces
Can act as both input and output units in the network system
The device can also receive messages from servers and other devices to start broadcasting
Support using browser to change device settings

Categories: , , ,

Description

Specifications:

Power Source DC 24V

Current Consumption Below 85mA

Audio Input 1V rms (Max: 2V rms), unbalanced 10KΩ

Audio Output 1V rms, unbalanced 600Ω

Frequency Response
LINE IN (Sampling Frequency: 22k): 20Hz -10kHz
LINE OUT (MP3/Sampling Frequency: 44k): 40Hz -15kHz

Control Contact Input
Open circuit voltage: 24V DC; short circuit current: ≤5mA

Relay
Normally Closed Contact (NC) Withstand voltage ≤30V DC, control current ≤500mA
Common Contact (COM) Withstand voltage ≤30V DC, control current ≤500mA
Normally Open Contact (NO) Withstand voltage ≤30V DC, control current ≤500mA

Network I/F 10 BASE-T/100 BASE-TX, auto negotiation

Network Protocol UDP, ARP, ICMP, IGMP

Operation Temperature 0°C to +40°C

Operation Humidity Less than 90% RH (no condensation)

Dimension (W) x (H) x (D) 91 x42 x106 mm

Accessory 5P terminal blocks x 1, 4P terminal blocks x1, Plastic foot (10mm*3mm) x4
