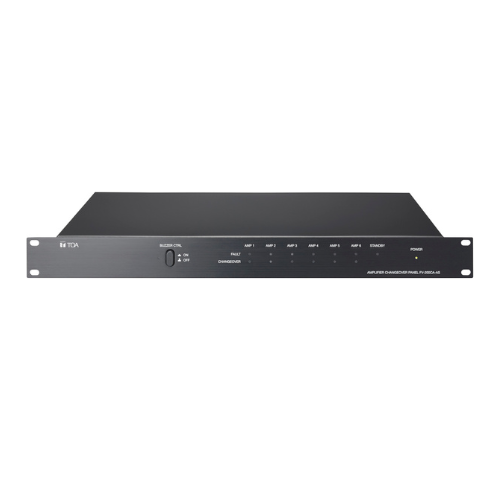

TOA FV-200CA-AS
TOA FV-200CA-AS

TOA FV-200CA-AS

Contact

The amplifier switch is used to manage the power amplifier in the entire FV-200 public address system. If an amplifier in the system fails, the amplifier switch will automatically switch to the backup amplifier. One amplifier switch can manage 06 main amplifiers and 01 backup amplifier. If necessary, 03 amplifier switches can be connected together to share 01 backup amplifier.

Categories: , , ,

Description

Specifications:

Power supply 24 V DC (voltage range: 21.6 – 26.4 V), M3 screw head

Consumption current 240 mA

Number of input channels 06 input channels and 01 input channel for backup amplifier

Number of output channels 06 output channels

Error alarm Error alarm with On/Off button

Indicator light Power indicator (green), switching amplifier (orange), error alarm (red), buzzer alarm (red)

Operating temperature 0 ℃ to +40 ℃

Humidity Below 90% RH (non-condensing)

Material Aluminum housing, black

Dimensions 482 (W) x 44 (H) x 343.8 (D) mm

Weight 2.6 kg

Accessories 2-pin removable connector x3, 8-pin removable connector x4
