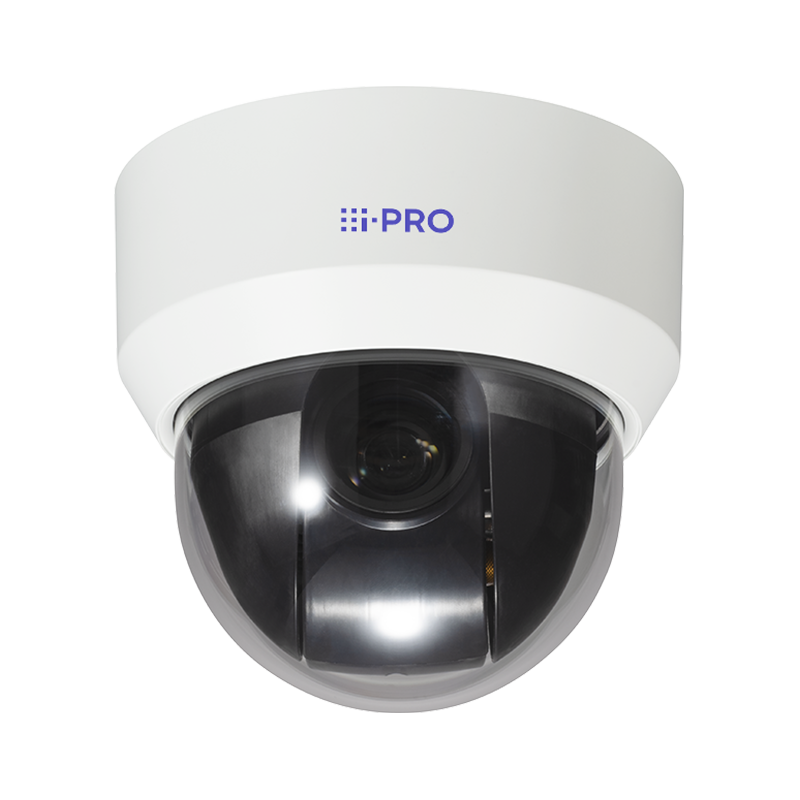

i-PRO WV-U65302-Z2

Description

Specifications:

Camera

Image Sensor Approx. 1/2.8 type CMOS image sensor

Minimum Illumination
Color :
0.011 lx (30IRE, F1.6, 1/30s, AGC:11)*
0.015 lx (50IRE, F1.6, 1/30s, AGC:11)
0.001 lx (50IRE, F1.6, 16/30s, AGC:11)*

BW :
0.006 lx (50IRE, F1.6, 1/30s, AGC:11)
0.0004 lx (50IRE, F1.6, 16/30s, AGC:11)*
*Converted value

White Balance ATW1 / ATW2 / AWC

Shutter Speed
[60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix
[50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix

Intelligent Auto On / Off

Super Dynamic On / Off, the level can be set in the range of 0 to 31.

Dynamic Range Max.144 dB (Super Dynamic : On, Level 31)

Adaptive Black Stretch The level can be set in the range of 0 to 255.

Back light compensation / High light compensation
BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off)

Fog compensation
On / Off, The level can be set in the range of 0 to 8
(only when Intelligent auto / auto contrast adjust : Off)

Maximum gain (AGC) The level can be set in the range of 0 to 11.

Color/BW (ICR) Off / On / Auto1 / Auto2 / Auto3 (SCC)

Digital Noise Reduction The level can be set in the range of 0 to 255.

Video Motion Detection (VMD) On / Off, 4 areas available

Scene Change Detection (SCD) On / Off, 1 areas available

Audio Detection On / Off

AI Sound Classification –

AI Analytics –

Privacy Zone On / Off, Up to 8 zones available

VIQS On / Off, Up to 8 zones available

Image Stabilizer On / Off (Built-in gyro sensor)

Camera Title (OSD) On / Off, Up to 40 characters (alphanumeric characters, marks)

Focus Adjustment Auto focus

Lens

Optical zoom 21x Optical, 31x with HD Extra Optical Zoom (Resolution 1280×720)

Extra zoom Max. 31x (21 to 31x : When resolution is 1280 x 720)

Focal Length 4.0 – 84.6 mm {5/32 inches – 3-21/64 inches}

Angular Field of View
[16 : 9 mode]
Horizontal : 3.7° (TELE) – 77° (WIDE), Vertical : 2.2° (TELE) – 44° (WIDE)
[ 4 : 3 mode]
‘Horizontal : 2.9° (TELE) – 58° (WIDE), Vertical : 2.2° (TELE) – 44° (WIDE)

Maximum Aperture Ratio 1 : 1.6 (WIDE) – 1 : 4.5 (TELE)

Focus Range 1.5 m {50-1/16 inches} – ∞

DORI

Detect (25ppm / 8ppf) Wide: 51.9m / 170.3 ft, Tele: 1293.8 m / 4244.9 ft

Observe (62.5ppm / 19ppf) Wide: 20.8 m / 68.1 ft, Tele: 517.5 m / 1697.9 ft

Recognize (125ppm / 38ppf) Wide: 10.4 m / 34.1 ft, Tele: 258.8 m / 849.0 ft

Identify (250ppm / 76ppf) Wide: 5.2m / 17.0 ft, Tele: 129.4 m / 424.5 ft

System on Chip (SoC)

System on Chip (SoC) Ambarella CV25M

Adjusting Angle

Adjusting Angle Horizontal : 360° Endless Panning, Vertical : -15 to +195°, Yaw : 0°

Pan/tilt

Panning Range 0° – 360°

Panning Speed Manual: Approx. 0.065°/s – 150°/s , Preset: Up to approx. 500°/s

Tilting Range Operational -15 – +195°

Tilting Speed
Manual: Approx. 0.065°/s –150°/s
Preset: Up to approx. 500°/s (PoE+), Up to approx. 350°/s (DC12 V PoE)

Preset Positions 256 positions

Auto Mode Auto pan/ Preset sequence/ Patrol

Self Return 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min

Browser GUI

Camera Control Brightness, AUX On / Off

Audio
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High

GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Browser Microsoft Edge, Firefox, Google Chrome

Network

Network IF 10 Base-T / 100 Base-TX, RJ45 connector

Resolution H.265/ H.264 JPEG (MJPEG)
[16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)],
[16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)]
1920×1080, 1280×720, 640×360, 320×180
[4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)]
1280×960, VGA, QVGA
[4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)]
2048×1536 , 1280×960, VGA, QVGA

H.265/H.264
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port (AUTO) / Unicast port (MANUAL) / Multicast

JPEG
[Image Quality]
10 steps

Smart Coding
GOP (Group of pictures control):
Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
Advanced(Fixed GOP 60s w/1s key-frame)/
Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.

Audio Compression
G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps

Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP, NTCIP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

Secure
FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
HTTPS, User authentication, Digest authentication, Host authentication,
IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware

SDXC/SDHC/SD Memory Card (Option)
H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card : 2 GB

Mobile Terminal Compatibility iPad, iPhone (iOS 8.0 or later), Android™ terminals

ONVIF® Profile G / S / T

Alarm

Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm

Alarm Actions
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output

Input/Output

Audio Input
ø3.5 mm stereo mini jack
For microphone input : Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.5 V ±0.5 V
For line input : Input level : Approx. –10 dBV

Audio Output
ø3.5 mm stereo mini jack (stereo output)
Output impedance : Approx. 600 Ω (unbalanced) , Output level : –20 dBV

External I/O Terminals
ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

Monitor Output
Yes (for adjustment)
Φ3.5mm stereo mini jack, NTSC or PAL signal can be output from camera
*WV-QCA501A is required

General

Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1

EMC FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035

Power Source and Power Consumption
DC12 V, PoE (IEEE802.3af), PoE+ (IEEE802.3at)
DC12 V: 1.3 A / Approx.15.6 W
PoE DC 48 V: 270 mA / Approx.12.95 W (Class 0 device)
PoE+ DC 54 V: 340 mA / Approx18.4 W(Class 4 device)

Ambient Operating Temperature
-30 °C to +55 °C (-22 °F to +131 °F)
(Power On range : -20 °C to +55 °C {-4 °F to +131 °F})
Maximum temperature according to NEMA TS2(2.2.7) : 74 °C(165 °F)

Ambient Operating Humidity 10 to 100 % (no condensation)

Anti-Condensation System Temish element

Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant

Shock Resistance IK10 (IEC 62262)

Wind Resistance Up to 40 m/s {approx. 89 mph}

Other standard support NEMA TS2(2.2.7-2.2.9)

Dimensions ø165 mm x 153 mm (H) {ø6-1/2 inches x 6-1/32 inches (H)}

Mass (Approx.) Approx. 1.7 kg {3.75 lbs.}

Finish
Main body : Aluminum die cast, Black polycarbonate resin, i-PRO white
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome section : Polycarbonate resin, Clear
