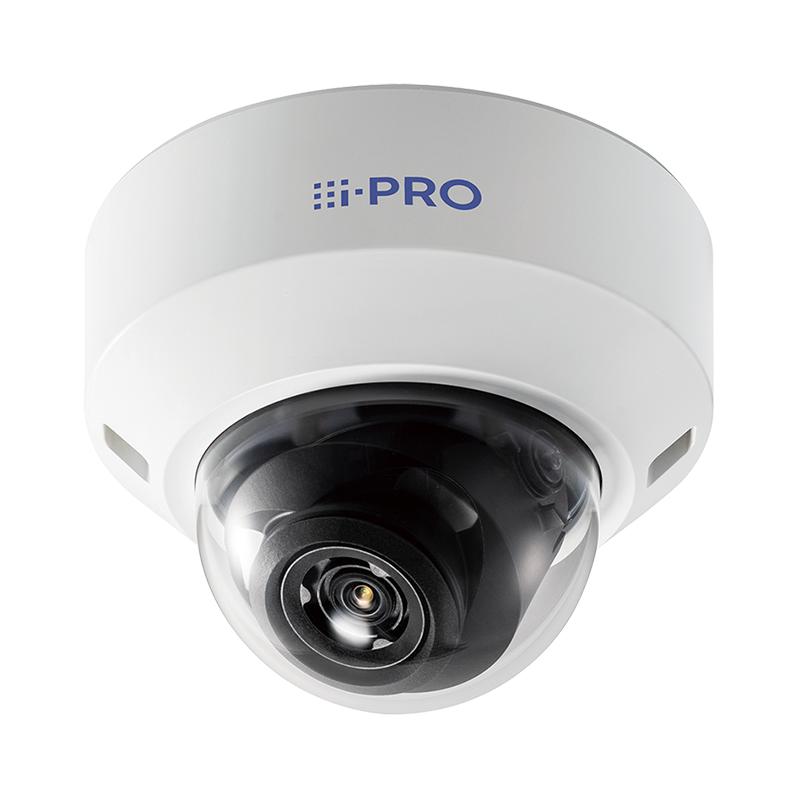

i-PRO WV-U2142LA

Description

Specifications:

Camera

Image Sensor Approx. 1/2.7 type CMOS image sensor

Minimum Illumination
Color :
0.21 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.3 lx (50IRE, F2.0, 1/30s, AGC:11)
0.019 lx (50IRE, F2.0, 16/30s, AGC:11)*

BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.12 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0075 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value

White Balance AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K)

Maximum Shutter Max. 1/10000 s to Max. 16/30 s

Intelligent Auto On / Off

Super Dynamic On / Off, the level can be set in the range of 0 to 31.

Dynamic Range Max. 102 dB (Super Dynamic : On, Level: 31)

Adaptive Black Stretch —

Back Light Compensation/High Light Compensation
BLC (Back light compensation) / HLC (High light compensation) / Off
(only when Super dynamic / Intelligent Auto : Off)

Fog Compensation
On/ Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)

Maximum Gain (AGC) The level can be set in the range of 0 to 11.

Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 20 m {Approx. 65 ft}

Digital Noise Reduction The level can be set in the range of 0 to 255.

Video Motion Detection (VMD) On / Off, 4 areas available

Scene Change Detection(SCD) On / Off, 1 areas available

Privacy Zone On / Off (up to 8 zones available)

Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°

Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)

Lens

Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}

Zoom ratio
2.5x Optical zoom (Motorized zoom / Motorized focus)
3.3x FHD Extra Optical Zoom (when resolution is 1920×1080)

Digital (electronic) zoom Choose from 3 levels of x1, x2, x4

Angular Field of View
[16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 44° (TELE) – 102° (WIDE)
Vertical : 25° (TELE) – 57° (WIDE)

Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)

Focusing Range 1 m {39-3/8 inches} – ∞

Dori

Detect (25ppm / 8ppf) Wide: 41.5 m /136.0 ft, Tele: 126.7 m / 415.8 ft

Observe (62.5ppm / 19ppf) Wide: 16.6 m / 54.4 ft, Tele: 50.7 m / 166.3 ft

Recognize (125ppm / 38ppf Wide: 8.3 m / 27.2 ft, Tele: 25.3 m / 83.2 ft

Identify (250ppm / 76ppf) Wide: 4.1 m / 13.6 ft, Tele: 12.7 m / 41.6 ft

Adjusting Angle

Adjusting Angle
Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 °
Azimuth (YAW) angle: ±100°

Browser GUI

Camera Control Brightness

GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network

Network IF 10Base-T / 100Base-TX, RJ45 connector

Resolution H.265/H.264
[16:9 mode(2688×1520 30fps mode)], [16:9 mode(2688×1520 25fps mode)]
2688×1520, 1920×1080, 640×360, 320×180
[16:9 mode(30fps mode)], [16:9 mode(25fps mode)]
2560×1440, 1920×1080, 640×360, 320×180
*[4:3 mode] is not supported.

H.265/H.264
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
[Max. frame rate foreach stream]
Stream(1)
2688×1520(30fps)
2560×1440(30fps)
1920×1080(30fps)
Stream(2)
Off
640×360(30fps)
1920×1080(30fps)
Stream(3)
Off
Off
640×360(10fps)
JPEG(1)
2560×1440(1fps)
2560×1440(1fps)
2560×1440(1fps)
JPEG(2)
1920×1080(1fps)
1920×1080(1fps)
1920×1080(1fps)

JPEG
[Image Quality]
10 steps

Smart Coding
GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
*Frame rate control and Advanced are only available with H.265.
AUTO VIQS: On/ Off

Audio Compression –

Audio Transmission Mode –

Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS,
NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

SDXC/SDHC/SD Memory Card (Option)
H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB

Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals

ONVIF® Profile G / S / T

Alarm

Alarm Source VMD alarm, SCD alarm, Command alarm

Alarm Actions
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output

Input/Output

Audio input –

Audio Output –

External I/O Terminals –

Monitor Output –

General

Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035

Power Source and Power Consumption
PoE (IEEE802.3af compliant) Device :
DC48 V 135 mA, Approx. 6.5 W (Class 0 device)

Ambient Operating Temperature
-10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}

Ambient Operating Humidity 10 to 90 % (no condensation)

Dimensions
ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}
Dome radius 40 mm {1-9/16 inches}

Mass (Approx.) Approx. 350 g {0.77 lbs}

Finish Main body : ABS resin, i-PRO white Dome section : Acrylic resin, Clear
