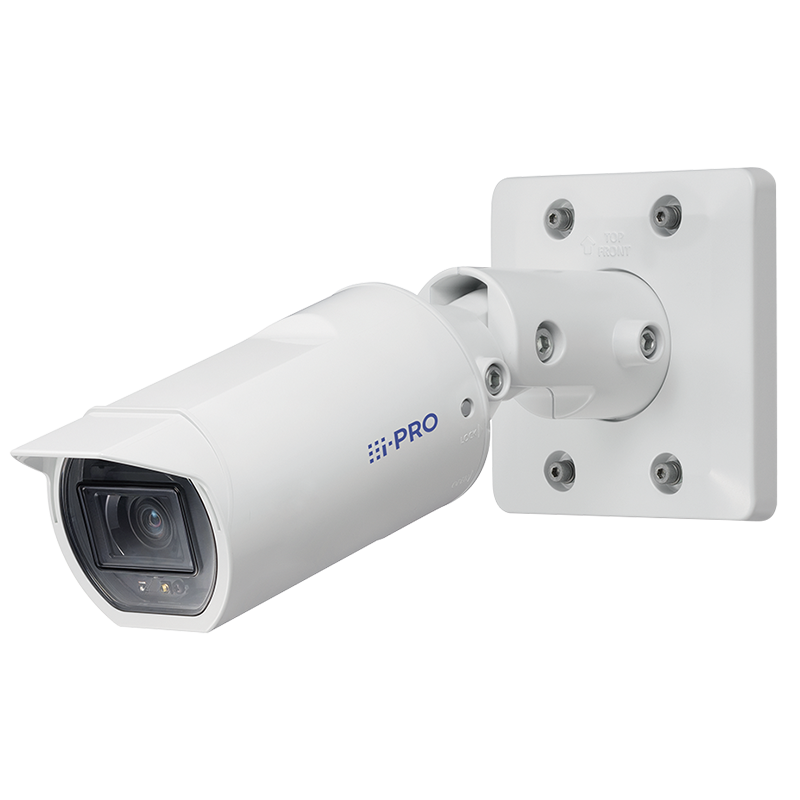

i-PRO WV-U1532LA

Contact

2MP (1080p) Varifocal Lens Outdoor Bullet Network Camera.

  • 2MP (1080p) up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 120dB
  • Color night vision (0.006 to 0.1 lx)
  • H.265 Smart Coding
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • Built-in IR LED
  • NDAA Compliant

Description

Specifications:

Camera

Image Sensor Approx. 1/3 type CMOS image sensor

Minimum Illumination
Color :
0.07 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.1 lx (50IRE, F2.0, 1/30s, AGC:11)
0.006 lx (50IRE, F2.0, 16/30s, AGC:11)*

BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.04 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0025 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value

White Balance ATW1/ATW2/AWC

Maximum shutter
[30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s

AI Intelligent Auto On / Off

Super Dynamic
On / Off,
the level can be set in the range of 0 to 31.

Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)

Adaptive Black Stretch —

Back Light Compensation/High Light Compensation
BLC/ HLC/ Off
(only when Super Dynamic/ Intelligent auto: Off)

Fog Compensation
On / Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)

Maximum Gain The level can be set in the range of 0 to 11.

Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)

IR LED Light
High/ Middle/ Low/ Off
Maximum irradiation distance: 30 m {Approx. 100 ft}

Digital Noise Reduction (DNR) The level can be set in the range of 0 to 255.

Video Motion Detection (VMD)
On / Off,
4 areas available

Scene Change Detection
On / Off,
1 area available

Privacy Zone
On / Off,
Up to 8 zones available

Image Rotation 0 ° (Off) / 90 ° / 180 ° (Upside-down) / 270 °

Camera Title (OSD)
On / Off
Up to 20 characters (alphanumeric characters, marks)

Lens

Focal Length 2.9 mm – 7.3 mm {1/8inches-9/32inches}

Optical Zoom 2.5x (Motorized zoom / Motorized focus)

Extra optical zoom 2.5x – 3.8x (when resolution is 1280×720)

Digital (Electronic) Zoom Choose from 3 levels of x1, x2, x4

Angular Field of View
[16 : 9 mode] Horizontal : 43° (TELE) – 100° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode] Horizontal : 32° (TELE) – 74° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)

Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)

Focus Range 1 m {39-3/8 inches} – ∞

Dori

Detect (25ppm / 8ppf) Wide: 35.5 m /116.6 ft, Tele: 98.5 m / 323.1 ft

Observe (62.5ppm / 19ppf) Wide: 14.2 m / 46.6 ft, Tele: 39.4 m / 129.2 ft

Recognize (125ppm / 38ppf) Wide: 7.1 m / 23.3 ft, Tele: 19.7 m / 64.6 ft

Identify (250ppm / 76ppf) Wide: 3.6 m / 11.7 ft, Tele: 9.8 m / 32.3 ft

Adjusting Angle

Ceiling Mounting
Horizontal: ±180 ° (Adjust by horizontal (PAN) angle)
Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)

Wall Mounting
Horizontal: ±100 ° (Adjust by vertical (TILT) angle)*
Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting
the horizontal (PAN) angle.

Browser GUI

Camera Control Brightness

GUI / Setup Menu Language
English, Italian, French, German, Spanish,
Portuguese, Russian, Chinese, Japanese

Network

Network IF
10Base-T / 100Base-TX,
RJ45 connector

Resolution H.265/ H.264/JPEG (MJPEG)
[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA

H.265 / H.264
[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type] Unicast / Multicast
[Max. frame rate for each stream]
Stream(1) : 1920×1080(30fps) / 1280×720(30fps) / 1600×1200(30fps)
Stream(2) : 640×360(30fps) / 1280×720(30fps) / 640×480(30fps)
Stream(3) : Off / Off / Off
JPEG(1) : 1920×1080(1fps) / 1920×1080(1fps) / 1600×1200(1fps)
JPEG(2) : 1280×720(1fps) / 1280×720(1fps) / 1280×960(1fps)

JPEG
Image Quality:
10 steps

Smart Coding
GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
*Frame rate control and Advanced are only available with H.265.
AUTO VIQS: On/ Off

Audio Compression —

Audio Transmission Mode —

Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP

No. of Simultaneous Users
Up to 14 users
(Depends on network conditions)

Secure
Device Certificate GlobalSign® pre-installed,
User authentication,Host authentication,
HTTPS, 802.1X Support, Data encryption

SDXC/SDHC/SD Memory Card (Option)
H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB

Mobile Terminal Compatibility
iPad, iPhone,
AndroidTM terminals

ONVIF Profile G / S / T

Alarm

Alarm Source (Alarm/Event) VMD alarm, SCD alarm, Command alarm

Alarm Actions
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser,
TCP alarm notification output

Input/Output

Audio Input –

Audio Output –

External I/O Terminals (Cable) –

Monitor Output –

General

Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035

Power Source and Power Consumption
PoE (IEEE802.3af compliant) Device:
DC48 V 140 mA, Approx. 6.7 W (Class 0 device)

Ambient Operating Temperature -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)}

Ambient Operating Humidity 10 to 100 % (no condensation)

Anti-Condensation System Temish element

Water and Dust Resistance IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant

Shock Resistance IK10 (IEC 62262)

Wind Resistance Up to 40 m/s {approx. 89 mph}

Dimensions
112.5 mm (W) x 112.5 mm (H) x 262 mm (D)
{4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)}

Mass (approx.) 860 g {1.90 lbs.}

Finish
Main body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Front cover: Polycarbonate resin, Clear
