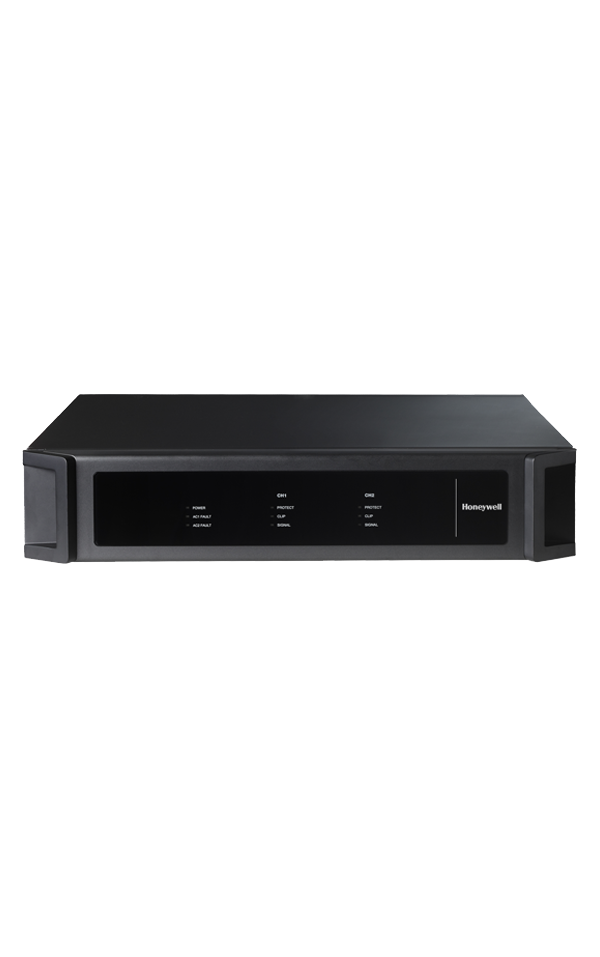

Honeywell X-DA2250
Honeywell X-DA2250
Honeywell X-DA2250

Honeywell X-DA2250

Contact

High-performance power amplifier for the X-618 PAVA system

The X-DA2250 amplifier provides amplification of audio signals transmitted by high-power speakers connected to the X-618 PAVA system. It supports both balanced and unbalanced audio inputs, and can automatically detect power supply failures during operation. Its lightweight, fireproof design protects it even in harsh conditions so that it can maintain consistently high performance.

FEATURES

– Nominal output power: 2 × 250 W

– Backup power supply voltage: ~ 220V – 240 V, 50 / 60 Hz

– Main power protection: T10 AL 250 V

– Main power supply voltage: ~ 220 V – 240 V, 50 / 60 Hz

– Power consumption: < 720 W

– Seaker output voltage: 100 V / 70 V

Categories: , , ,

Description

Specifications:

Model No. X-DA2250

Operating Conditions 95 % humidity, 0 °C ~+40 °C (0 ~ 104°F) (no condensation)

Impedance 20 KΩ

Frequency Response 70 Hz -18 KHz(+1 dB ~ -3 dB )

Main Power Supply Voltage ~ 220V-240V, 50/60Hz

Gross Weight 15.3 Kg

Backup power supply ~ 220V-240V, 50/60Hz

Storage Temperature -10°C~ +55 °C (14°F~131°F)

Product dimensions (W×H×D) 416mm × 88mm × 483 mm

Package dimension (W×H×D) 489mm × 186mm × 568 mm

Net Weight 12.2 Kg

Power consumption < 720 W

SNR > 100 dB(with A-Weight)

Non-linear distortion <0.05% (at 1/3 rated power, 1 KHz)

Indicator Lights Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights

Cooling method Air Cooling

Nominal output power 2 × 250 W

Main power supply protection T10 AL 250 V

Seaker output voltage 100 V / 70 V

Input sensitivity 1.414VRMS

No <0.05% (at 1/3 rated power, 1 KHz)

Number of channels 2
