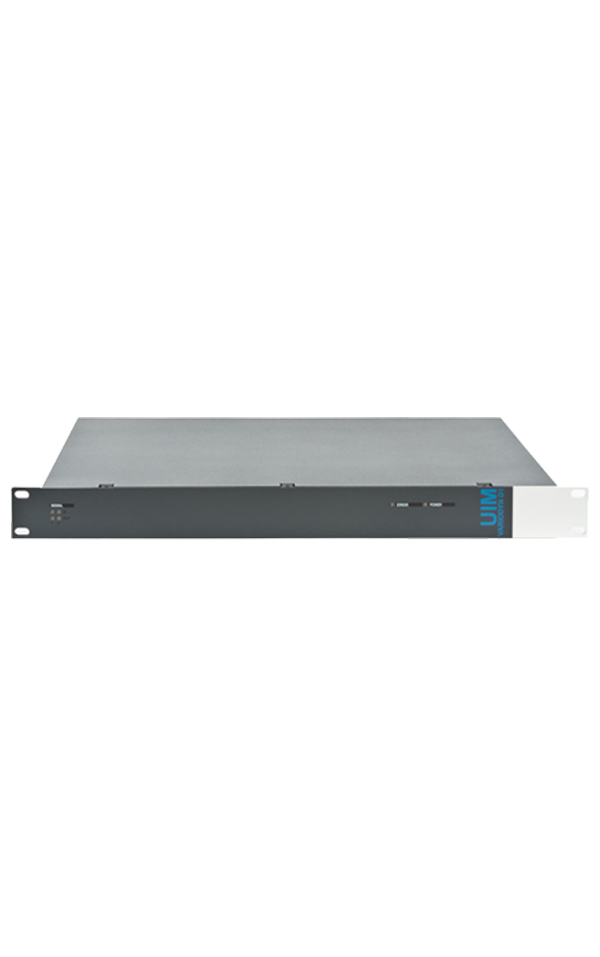

Honeywell UIM
Honeywell UIM
Honeywell UIM

Honeywell UIM

Contact

Universal Interface Module | 48 Contacts | 19” Mounting Unit

The Honeywell Universal Interface Module (UIM) serves as the interface module for the Variodyn D1 PAVA system, connecting to the system via the DAL bus. It connects two analog audio inputs, two analog audio outputs, as well as 48 control contacts. These 48 contacts can be configured as contact inputs or outputs, allowing for easy external control.

FEATURES

– Audio input Nominal level: 0 dB

– Audio output Transmission range: 20 Hz to 22 kHz

– Relative humidity: 15 % to 90 %

– Audio input Maximum level: +6 dB

– Audio output Nominal level: 0 dB

– Weight: approx. 3.6 kg

Categories: , , ,

Description

Specifications:

Audio Inputs

Nominal level 0 dB

Max. level +6 dB

Transmission range 20 Hz to 22 kHz

Signal-to-noise ratio > 95 dB

Harmonic distortion (at the nominal level) < 0.05 %

Input impedance XLR-socket 100 k Ω, symmetric floating output

Input impedance Cinch-socket 1 k Ω, asymmetric floating output

Audio Outputs

Nominal level 0 dB

Transmission range 20 Hz to 22 kHz

Signal-to-noise ratio. > 85 dB

Harmonic distortion (at the nominal level) < 0.05 %

Input impedance XLR-socket 200 Ω symmetric floating output

Input impedance Cinch-socket 200 Ω, asymmetric floating output

Input Contact

Max. input voltage +36 V DC

Output Contacts

Contact rating 36 V DC/50 mA

Short-circuit-proof against +24 V 1s

General technical Data

Ambient temperature -5 °C to +55 °C

Relative humidity 15 % to 90 %

Weight approx. 3.6 kg

Dimensions (W x H x D) 483 x 44 x 345 mm/1 HE, 19”
