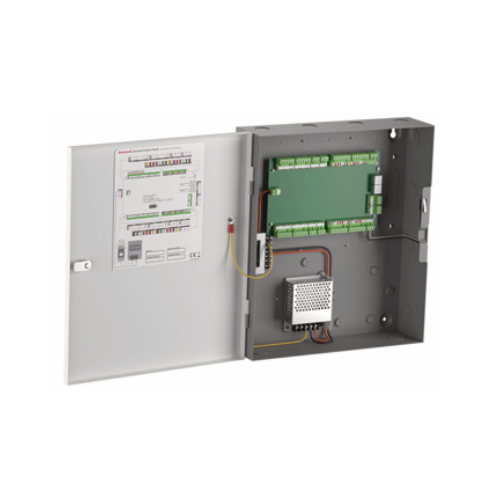

Honeywell PRO4000 Controllers

Contact

4-door Intelligent Controller

PRO4000 is an advanced access control panel capable of providing solutions for medium to large applications which is working under WINPAK® platform.

Description

Specifications:


	PRO4000KD4	PRO4000PD4	PRO4000KD2	PRO4000PD2
PLATFORM
Processor	ARM9, 600MHz
Operating System	Linux
DATABASE
Cardholder Capacity	100,000
Event Capacity	100,000
Access Level	128
Holiday	255
Time Zone	127
Card Format	128
Credential Facility	8
Real Time Clock	Geographic time zone support and leap year support
Site Code	8
BASIC
Anti-Passback	Local/Global/Forgiveness
Authentication	card only / pin only / card + pin / card or pin
Firmware upgrade	Batch firmware upgrade for both host and slave panels
PANEL
Door	4		2
Reader	4 x (LED/D0/D1/GND/VCC/TAMP/BUZ) D0 / D1: Wiegand, Maximum distance of 150m LED / BUZ: Open-drain Output VCC: 12VDC@0.5A power drive capability TAMP: Supervised Input, 4-status (normal/alarm/cut/short)		2 x (LED/D0/D1/GND/VCC/TAMP/BUZ) D0 / D1: Wiegand, Maximum distance of 150m LED / BUZ: Open-drain Output VCC: 12VDC@0.5A power drive capability TAMP: Supervised Input, 4-status (normal/alarm/cut/short)
Lock Control	4 x Form Y (30VDC@5A Load capacity)		2 x Form Y (30VDC@5A Load capacity)
Auxiliary Control	4 x Form C (30VDC@2A Load capacity)		2 x Form C (30VDC@2A Load capacity)
Door Contact	4 x Supervised Input, 4-status (normal/alarm/cut/short)		2 x Supervised Input, 4-status (normal/alarm/cut/short)
Door Egress	4 x Supervised Input, 4-status (normal/alarm/cut/short)		2 x Supervised Input, 4-status (normal/alarm/cut/short)
Enclosure Tamper	1 x dry-contact input
AC Power Loss	1 x dry-contact input
Downstream Bus	1 x RS485, on-board terminal resistor and switch
USB	1 x USB Micro, reserve purpose
Ethernet	1 x RJ45, 10/100Mb
Power	1 x 12VDC less than < 1A (not including reader and Lock)
ENCLOSURE & POWER
Switch Supply (Panel)	100~240VAC Input, 47~63Hz, 12VDC@3A	N/A	100~240VAC Input, 47~63Hz, 12VDC@3A	N/A
Circuit Breaker	Reserved Space	N/A	Reserved Space	N/A
Switch Supply (Lock)	Reserved Space (Shared with Battery)	N/A	Reserved Space (Shared with Battery)	N/A
Battery	Reserved Space (Shared with Switch supply Lock)	N/A	Reserved Space (Shared with Switch supply Lock)	N/A
ENVIRONMENT
Working Temp.	-10°C ~ 55°C
Working Humidity	0% ~ 90%, non-condensing
Dimensions	410 mm (L) x 360 mm (W) x 104mm (H)	229 mm (L) x 144 mm (W)	410 mm (L) x 360 mm (W) x 104mm (H)	229 mm (L) x 144 mm (W)
Weight	5.9kg	0.5 kg	5.8Kg	0.41 kg
CERTIFICATION
CE, UAE RoHS
