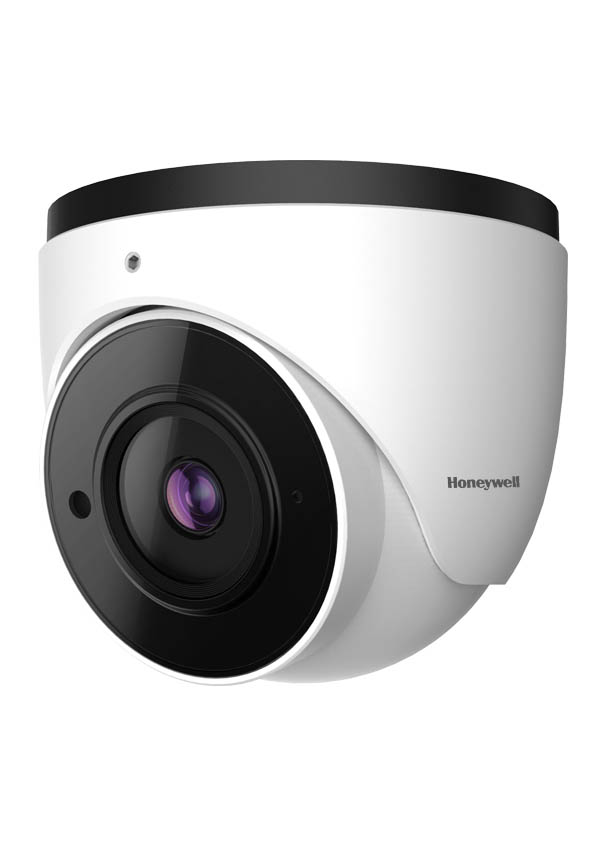

Honeywell HP4E2

Description

Specifications:

OPERATIONAL
VIDEO STANDARD PAL/NTSC
IMAGE SENSOR 1/2.7” CMOS
NUMBER OF PIXELS (H × V) 2560(H) × 1440(V)
MINIMUM ILLUMINATION 0.04 lux @ F2.2, AGC ON 0 lux with IR ON
S/N RATIO > 50 dB
ELECTRONIC SHUTTER SPEED 1/25s ~ 1/ 100,000s
IR DISTANCE Distance up to 30 – 50 m
DAY/NIGHT Auto/Day/Night/Timing
BACKLIGHT COMPENSATION BLC, HLC
WHITE BALANCE Auto/Indoor/Outdoor/Manual
WIDE DYNAMIC RANGE Digital WDR
NOISE REDUCTION 3D DNR
PRIVACY MASKING Off / On (4 Areas)
MOTION DETECTION Support
REGION OF INTEREST Support (3)
LENS 2.8mm~12mm, MFZ
ANGLE OF VIEW Horizontal: 94°~35.7°
AUDIO One way, Inbuilt Microphone

VIDEO
VIDEO COMPRESSION H.265 / H.264
RESOLUTION 4MP(2560×1440), 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1(704×576), CIF(352×288), 480×240
FRAME RATE Main stream: 4MP/3MP/1080P(1~25fps) Sub stream: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps) Third stream: D1/CIF/480×240 (1~25fps
BIT RATE CONTROL CBR / VBR
BIT RATE 64 Kbps ~ 5 Mbps

NETWORK
ETHERNET 10/100 Base-T Ethernet (RJ-45)
SUPPORTED WEB BROWSERS Internet Explorer 11.0+
SUPPORTED OS Microsoft Windows 7/10
INTEROPERABILITY ONVIF Profile S, G
PROTOCOLS* IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, 802.1X, UDP, ICMP, ARP, TLS
MAXIMUM USERS ACCESS 4 Users
SECURITY User account and password protection, HTTPS, IP Filter, TLS1.2, AES-128/256
MICRO SD Micro SD/SDHC/SDXC card slot (128GB)

ELECTRICAL
POWER SUPPLY DC12V, PoE (IEEE 802.3af) (Class 3)
POWER CONSUMPTION Max 9W

MECHANICAL
DIMENSIONS ø111.5mm x 99.6mm
PRODUCT WEIGHT 0.65kg
MATERIAL Metal housing with coating

ENVIRONMENTAL
OPERATING TEMPERATURE -30°C ~ 60°C (-22°F ~ 140°F)
RELATIVE HUMIDITY Less than 90%, non-condensing
INGRESS PROTECTION IP67

REGULATORY
Certification CE, FCC, RoHS
