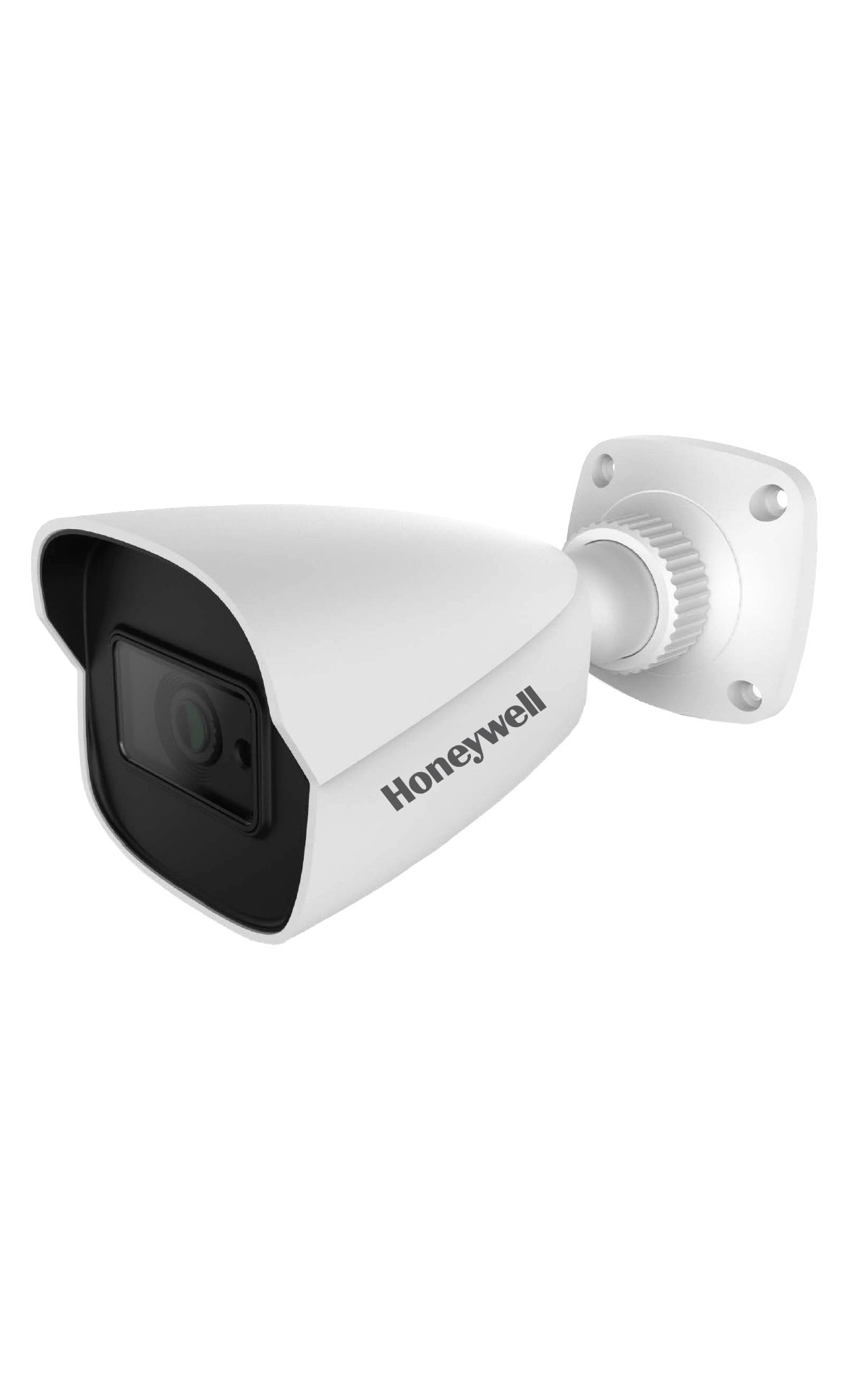

Honeywell HP2B1

Description

Specifications:

OPERATIONAL
Video Standard PAL/NTSC
Image Sensor 1/2.8” CMOS
Number Of Pixels (H × V) 1920(H) × 1080(V)
Minimum Illumination 0.0035 lux@F1.2, AGC ON
0 lux with IR ON
S/N Ratio > 50 dB
Electronic Shutter Speed 1s ~ 1/ 100,000s
IR Distance Up to 20 – 30 m, depending on scene reflectance
Day/Night Auto(ICR)/Day/Night/Timing
Backlight Compensation BLC, HLC
White Balance Auto/Indoor/Outdoor/Manual
Wide Dynamic Range Digital WDR
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Areas)
Motion Detection Support
Region Of Interest Support (3)
Lens 3.6 mm, Fixed
Angle Of View H: 87.3°, V: 56.5°
Audio 1 In

VIDEO
Video Compression H.265 / H.264
Resolution 1080P(1920×1080), 720P(1280×720),
D1(704×576), CIF(352×288), 480×240
Frame Rate (PAL/NTSC) Main stream: 1080P/720P (1~25/30fps)
Sub stream: D1/CIF (1~25/30fps)
Third stream: D1/CIF/480×240 (1~25/30fps)
Bit Rate Control CBR / VBR
Bit Rate 64 Kbps ~ 6 Mbps

NETWORK
Ethernet 10/100 Base-T Ethernet (RJ-45)
Supported Web Browsers Internet Explorer 11.0+
Supported OS Microsoft Windows 7/10
Protocols* IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile S, G
Maximum Users Access 3 Users
Security* User account and password protection,
HTTPS, IP Filter, TLS1.2, AES-128
Micro SD Micro SD/SDHC/SDXC card slot (128GB)

ELECTRICAL
Power Supply DC12V, PoE (IEEE 802.3af) (Class 3)
Power Consumption Max 5.5W

MECHANICAL
Dimensions 167.5mm × 74.5mm × 74.5mm
Product Weight 0.39kg
Material Metal housing with coating

ENVIRONMENTAL
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Relative Humidity Less than 95%, non-condensing
Ingress Protection IP67

REGULATORY
Certification CE, FCC, RoHS
