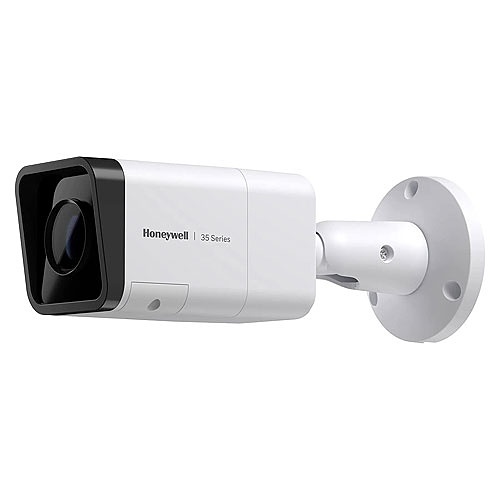

Honeywell HC35WB3R2

Description

Specifications:

OPERATIONAL
Video Standard NTSC / PAL
Scanning System Progressive
Image Sensor 1/2.7” CMOS
Sensor Size (H x V) 4.608 mm x 2.592 mm
Number Of Pixels(H x V) 2304 x 1296
Minimum Illumination (Color/BW) 0.005 Lux/F1.6 (Color,30 IRE), 0 Lux/F1.6 (IR ON)
S/N Ratio 50 dB
Electronic Shutter Speed 1/8 ~ 1/32,000
IR Distance up to 60 m
IR Light Control Smart IR (Auto / Manual) / OFF
IR Light Number 4
Day/Night Auto (ICR) / Color / BW
Backlight Compensation WDR, BLC, HLC
White Balance Auto/Tungsten/ Fluorescent/ Daylight/Shadow/Manual
Gain Control 0-100%
Wide Dynamic Range 120 dB
Noise Reduction 2D/3D DNR
Lens 2.7-13.5 mm, DC-Iris, F1.6-F3.3, MF
Angle Of View H:81°-24°, V:44°-14°
Privacy Masking Off / On (4 Areas)
Defog Not supported
Local Storage Micro SD (up to 256 GB)
Alarm Inputs/Outputs Not supported

VIDEO
Video Compression H.265 HEVC/H.264/MJPEG, Smart Codec
Resolution
1st: 2592 x 1944 / 2592 x 1520 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576(PAL) / 704 x 480(NTSC) / 640 x 480 / 352 x 288(PAL) / 352 x 240(NTSC)
3rd: 1920 x 1080 (MAX 12 fps) / 640 x 480/352 x 288(PAL) / 352 x 240(NTSC) / 320 x 240
Number of Video Streams 3 (2 for encryption)
Frame Rate* MAX 30 fps
Bit Rate* 100K ~ 6 Mbps

AUDIO
Audio Compression Not supported
Audio Stream Not supported
Audio Interface Not supported

NETWORK
Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome/Edge
Supported OS Microsoft Windows 10
Protocols** IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile G/S/T
Maximum Users Access 10 Users
Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance
Languages Supported Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS / ANALYTICS
Built-in Video Analytics Motion Detection, Tampering
Event Type Video motion detection,Recording notification
Event Linkage Event notification using Email and MicroSD card
Region Of Interest 8

ELECTRICAL
Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)
Power Consumption (Max) MAX 5.5W

MECHANICAL
Dimensions Ø87.0 mm × 232.0 mm (Ø3.43” × 9.13”)
Product Weight 0.92 kg (2.03 lb)
Package Weight 1.05 kg (2.31 lb)
Body Material Die-cast aluminium housing
Color Camera Body: RAL 9003 (Signal White)
Front/Lens Facings: Pantone Black

ENVIRONMENTAL
Operating Temperature
Starting Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR off)
Relative Humidity Less than 90 %, non-condensing
Ingress Protection IP67
Bullet Casing IK10

REGULATORY
Emissions FCC PART 15, CE (EN 55032), Complies with RCM and UKCA
Immunity CE(EN 50130-4), Complies with RCM and UKCA
Safety UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA
RoHs CE (EN 63000), UAE (Cabinet Decree No.10 of 2017)
