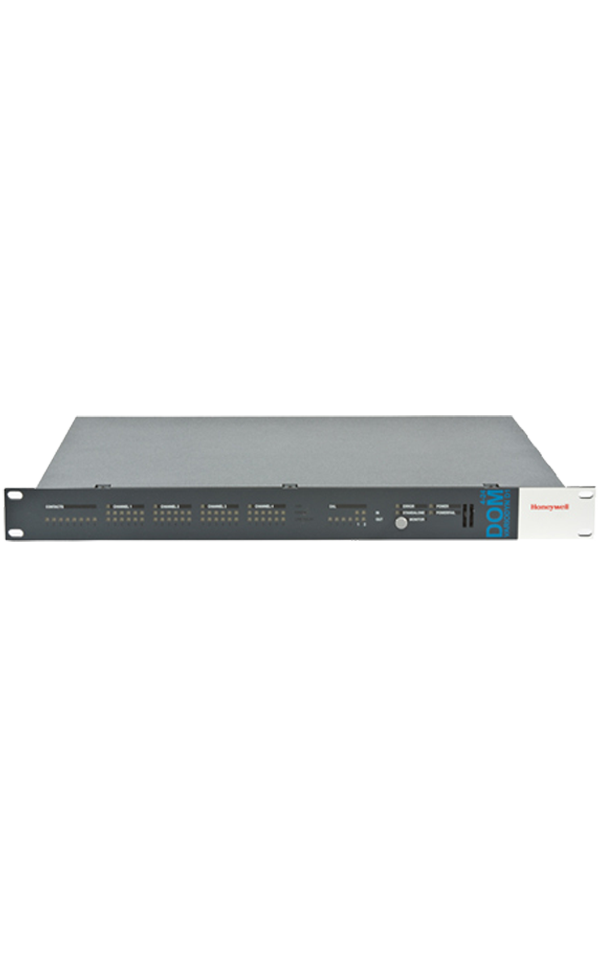

Honeywell DOM4-24

Description

Specifications:

Audio Output

Output type electronically balanced

Nominal level 0 dB

Max. output level +6 dB

Transmission range 20 Hz to 20 kHz

Max. harmonic distortion 0.1 % in transmission range

Max. deviation from the linear transmission ±1 dB in transmission range

Sensor Input (AVC*)

Input type symmetric ungrounded

Nominal level -51 dB

Transmission range 100 Hz to 8 kHz

Max. deviation from the linear transmission ±6 dB in transmission range

Harmonic distortion at the nominal level < 0.2 % at 1 kHz

Unweighted signalto-noise ratio at the nominal level
> 65 dB (A)
> 60 dB

Max. harmonic distortion 1 % in transmission range

Load impedance typ. 200 Ω

Nominal level for emergency telephone station 0 dB

Control Contacts

Max. voltage 100 V DC / 1 A

Surge voltage resistant > 2.5 kV

Connection Contacts

Max. voltage 250 V AC, 30 V DC / 5 A

Surge voltage resistance > 1.5 kV

Mains Voltage

Voltage range 90 V AC to 264 V AC

Frequency range 47 Hz to 440 Hz

Power consumption DOM4-24 with/without 4 x DAL 50 W/80 W @ 230 V AC

Emergency Power Supply

Nominal voltage 24 V DC

Power consumption 24 W

Ambient temperature -5 °C to +55 °C

Relative humidity 15 % to 90 %

Weight 6.8 kg

Dimensions (W x H x D) 483 x 44 x 345 mm/1 HE, 19″
