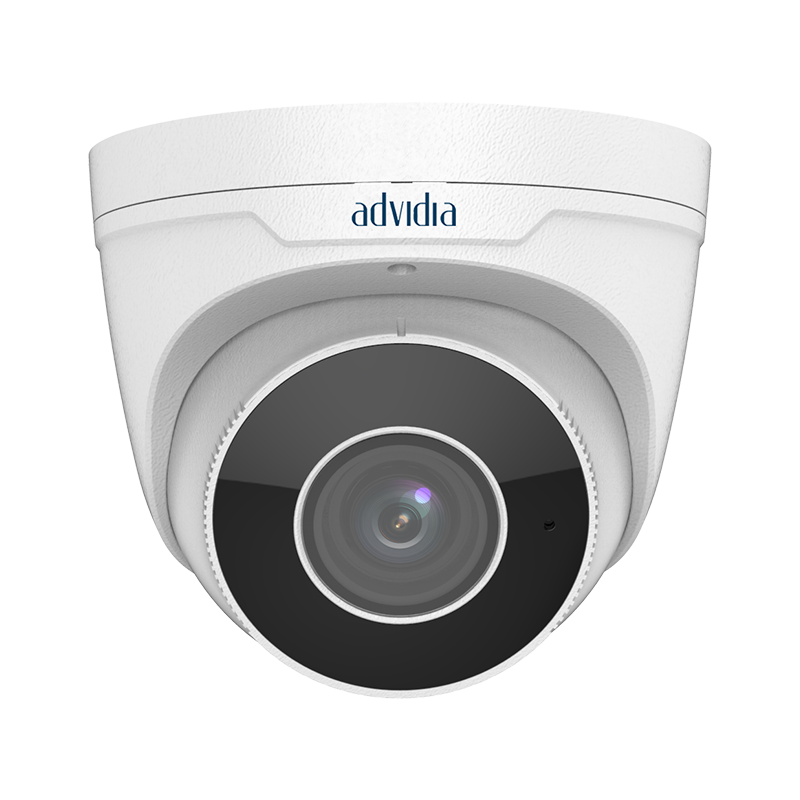

Advidia M-44-V-T-V2

Description

Specifications:

Device

COMPONENT SPECIFICATION

Image Sensor 1/3″, 4.0 Megapixel, Progressive Scan, CMOS

Min Illumination Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR

Shutter Time Auto/Manual, 1 ~ 1/100000s

Lens 2.8 ~ 12mm, AF Automatic Focusing and Motorized Zoom Lens

WDR 120dB

Angle of View H:102.79°~ 30.86°, V: 54.50°~ 17.49°, O: 106.94°~35.49°

Angle Adjustment Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360°

3-Axis Adjustment Yes

Day & Night IR-Cut Filter with Auto Switch (ICR)

IR Range Up to 40m (131ft) IR range

Compression Standard

COMPONENT SPECIFICATION

Video Compression Ultra 265, H.265, H.264, MJPEG

Video Bit Rate 128 Kbps~16 Mbps

Dual Streams Yes

Analytics Intrusion, Human Body Detection, Motion Detection,
Tampering Alarm, Audio Detection


COMPONENT SPECIFICATION

Max. Image Resolution 2688 x 1520

Frame Rate 25fps (2688 x 1520)

ROI Codec Up to 8 areas

Image Setting White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC, Defog

Network

COMPONENT SPECIFICATION

Alarm Channels –

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS,
DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, Qos, 802.1x, SNMP

Interface

COMPONENT SPECIFICATION

Communication Interface 10M/100M Base-TX Ethernet

Local Storage Micro SD, up to 256GB

Audio Built-in Mic

General

COMPONENT SPECIFICATION

Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1

EMC FCC: FCC Part15

Operating Conditions
Temperature: -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (Non-Condensing)

Power Consumption Max 8.0W

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Weather Proof Rating IP67

Vandal Resistant –

Dimensions Φ129 x 110mm (Ø5.1” x 4.3”)

Weight 0.67kg (1.48lb)

Software Includes Video Insight VMS License
